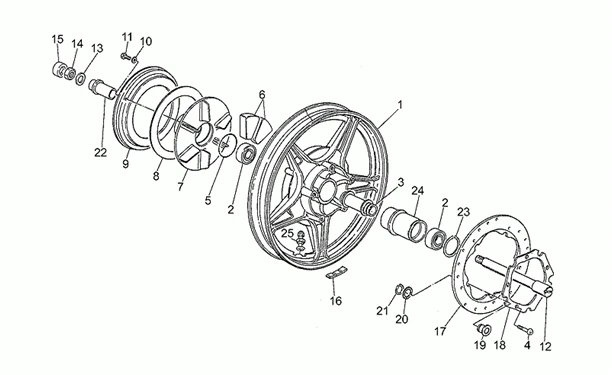

Chassis : 33.27 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/494/Le_Mans_1000_1983-1994_33.27.PNG)
1 |
ROUE ARRIERE |
||||||
|
1 |
ROUE ARRIERE |
||||||
|
1 |
GU28630660 - ROUE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/2/img/132402.jpg)
2 |
ROULEMENT DE ROUE (20X47X14) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU92204220- More informationQuantity required : 2 |
||||||
|
3 |
GU14634050 - ENTRETOISE INTERNE ROULEMENTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/8/0/img/132980.jpg)
4 |
GU98230825 - VIS More informationQuantity required : 5 |
||||||
|
5 |
GU90706490 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
6 |
GU01336800 - PARASTRAPPI More informationQuantity required : 12 |
||||||
|
7 |
GU14335203 - DISQUE PIECE EN CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
8 |
GU14335350 - BAGUE More informationQuantity required : 1 |
||||||
|
9 |
GU14335650 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
10 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 3 |
||||||
|
11 |
GU98054320 - VIS M6X20 More informationQuantity required : 3 |
||||||
|
12 |
GU28633300 - AXE More informationQuantity required : 1 |
||||||
|
13 |
GU14634400 - RONDELLE More informationQuantity required : 1 |
||||||
|
14 |
GU92602316 - ECROU M6X1,5 More informationQuantity required : 1 |
||||||
|
15 |
GU62616800 - BOUCHON More informationQuantity required : 1 |
||||||
|
16 |
GU14616150 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
17 |
|
||||||
|
17 |
|
||||||
|
18 |
Disque frein int. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/2/4/4/img/130244.jpg)
19 |
BUSH FOR BRAKE DISC (FRONT)"PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, 1000 CALIFORNIA, LE-MANS, STRADA -GU28613560 More informationQuantity required : 5 |
||||||
|
20 |
GU28618860 - RESSORT A GODET More informationQuantity required : 5 |
||||||
|
21 |
GU90271022 - BAGUE SEEGER More informationQuantity required : 5 |
||||||
|
22 |
GU17634150 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
23 |
GU90271055 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
24 |
GU14632250 - MOYEU More informationQuantity required : 1 |
||||||
|
25 |
GU28617760 - SOUPAPE AIR More informationQuantity required : 1 |
