Vehicle Exploded View - APRILIA LEONARDO 250 (eng.Minarelli) 02-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

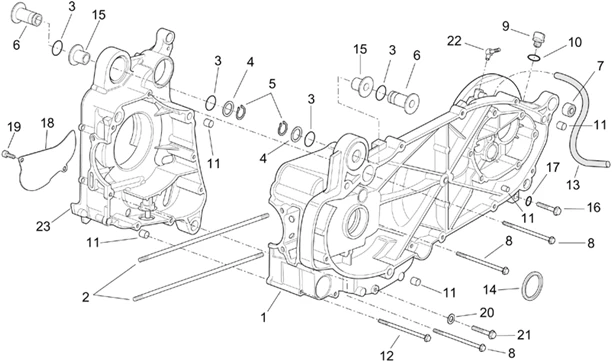

Moteur : 29.41 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/253/Leonardo_250_(eng.Minarelli)_02-04_29.41.PNG)
1 |
Carter G |
||||||
|
1 |
AP8555007 - CARTER SX More informationQuantity required : 1 |
||||||
|
2 |
AP8122424 - VIS SANS T?TE More informationQuantity required : 4 |
||||||
|
3 |
AP8144270 - JOINT TORIQUE; More informationQuantity required : 4 |
||||||
|
4 |
Rondelle; |
||||||
|
5 |
Bague seeger |
||||||
|
6 |
AP8122454 - ENTRETOISE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/8/1/img/55681.jpg)
7 |
SILENTBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" APRILIA 50 RALLY, SONIC, SR, GULLIVER, AMICO, SCARABEO -AP8206129- More informationQuantity required : 1 |
||||||
|
8 |
Vis bride; |
||||||
|
9 |
AP8206475 - BOUCHON ALIMENTATION HUILE More informationQuantity required : 1 |
||||||
|
10 |
AP8206482 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
11 |
AP8502807 - GOUPILLE More informationQuantity required : 6 |
||||||
|
12 |
Vis bride; |
||||||
|
13 |
Tuyau; |
||||||
|
14 |
AP8122535 - JOINT SPI; More informationQuantity required : 1 |
||||||
|
15 |
AP8122507 - SUPPORT; More informationQuantity required : 2 |
||||||
|
16 |
Vis bride; |
||||||
|
17 |
AP8206488 - JOINT VIS More informationQuantity required : 1 |
||||||
|
18 |
Couvercle; |
||||||
|
19 |
Vis; |
||||||
|
20 |
AP8552029 - RONDELLE; More informationQuantity required : 1 |
||||||
|
21 |
Vis bride; |
||||||
|
22 |
AP8552031 - RACCORD 90°; More informationQuantity required : 1 |
||||||
|
23 |
Carter D |
||||||
|
23 |
AP8555008 - CARTER DX More informationQuantity required : 1 |
