Vehicle Exploded View - APRILIA LEONARDO 250 (eng.Minarelli) 02-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

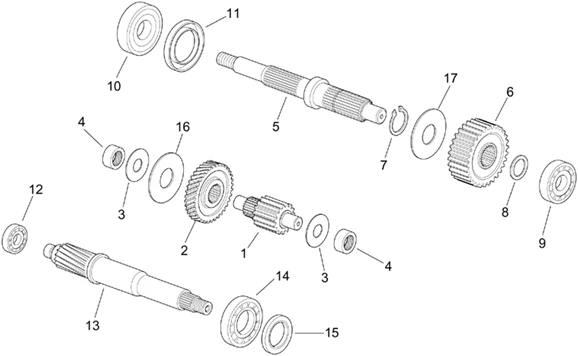

Moteur : 29.49 TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/253/Leonardo_250_(eng.Minarelli)_02-04_29.49.PNG)
1 |
Engrenage intermédiaire |
||||||
|
2 |
Engrenage |
||||||
|
3 |
Rondelle; |
||||||
|
4 |
AP8125826 - ROULEMENT A ROULEAUX More informationQuantity required : 2 |
||||||
|
5 |
AP8552129 - ARBRE SORTIE; More informationQuantity required : 1 |
||||||
|
6 |
AP8552130 - ENGRENAGE; More informationQuantity required : 1 |
||||||
|
7 |
Bague seeger; |
||||||
|
8 |
Rondelle; |
||||||
|
9 |
Roulement à billes |
||||||
|
10 |
Roulement |
||||||
|
11 |
Joint spi; |
||||||
|
12 |
AP8122427 - ROULEMENT A BILLES More informationQuantity required : 1 |
||||||
|
13 |
AP8552137 - ARBRE DE TRANSMISSION; More informationQuantity required : 1 |
||||||
|
14 |
AP8125823 - ROULEMENT More informationQuantity required : 1 |
||||||
|
15 |
Joint spi; |
||||||
|
16 |
Ressort à godet |
||||||
|
17 |
Ressort à godet; |
