Vehicle Exploded View - APRILIA LEONARDO 250 (eng.Minarelli) 02-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

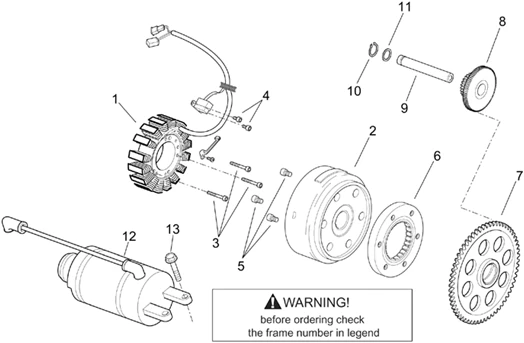

Moteur : 29.48 ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/253/Leonardo_250_(eng.Minarelli)_02-04_29.48.PNG)
1 |
AP8127493 - STATOR COMPLET More informationQuantity required : 1 |
||||||
|
1 |
AP8552112 - STATORE CPL. More informationQuantity required : 1 |
||||||
|
2 |
AP8127494 - ROTOR VOLANT More informationQuantity required : 1 |
||||||
|
2 |
AP8552113 - ROTOR VOLANT More informationQuantity required : 1 |
||||||
|
3 |
Vis; |
||||||
|
4 |
Vis; |
||||||
|
5 |
Vis; |
||||||
|
6 |
AP8122626 - ROUE LIBRE COMPLETE; More informationQuantity required : 1 |
||||||
|
7 |
AP8122499 - ENGRENAGE ROUE LIBRE; More informationQuantity required : 1 |
||||||
|
8 |
Engrenage intermédiaire; |
||||||
|
9 |
Axe; |
||||||
|
10 |
AP8122438 - BAGUE DE BUTEE More informationQuantity required : 1 |
||||||
|
11 |
Rondelle; |
||||||
|
12 |
AP8122628 - DEMARREUR CPL.; More informationQuantity required : 1 |
||||||
|
13 |
Vis bride; |
