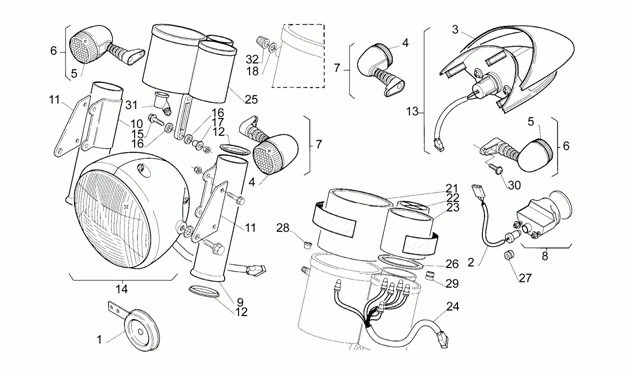

Chassis : 16 TABLES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/300/Moto_6.5_650_1995-1999_16.PNG)
1 |
AP8112413 - KLAXON More informationQuantity required : 1 |
||||||
|
2 |
FAISCEAU PLAQUE MINERAL. |
||||||
|
3 |
CABOCHON AR 6.5 |
||||||
|
4 |
CABOCHON AV DR 6.5 |
||||||
|
5 |
AP8124329 - CABOCHON CLIGNO.AVAN.DRO More informationQuantity required : 2 |
||||||
|
6 |
AP8124378 - CLIGNOTANT AR.G/AV.DR More informationQuantity required : 2 |
||||||
|
7 |
AP8124377 - CLIGNOTANT AR.DR/AV.G More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/9/5/img/57295.jpg)
8 |
AP8224196 - FEU DE PLAQUE; More informationQuantity required : 1 |
||||||
|
9 |
SUPPORT PHARE G. 6.5 |
||||||
|
10 |
SUPPORT PHARE DR 6.5 |
||||||
|
11 |
TRIANGLE PHARE 6.5 |
||||||
|
12 |
C/C SUPPORT PHARE |
||||||
|
13 |
FEU ARRIERE COMPLET 6.5 |
||||||
|
14 |
Phare 6.5 |
||||||
|
14 |
FEU AVANT 6.5 GB |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
15 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 2 |
||||||
|
16 |
AP8220228 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
17 |
ENTRETOISE |
||||||
|
18 |
Joint etancheite |
||||||
|
21 |
COMPTEUR 6.5 (miles) |
||||||
|
21 |
COMPTEUR 6.5 |
||||||
|
22 |
BOITE VOYANT =8124327 |
||||||
|
23 |
AP8124077 - THERMOMETRE EAU 6.5 More informationQuantity required : 1 |
||||||
|
24 |
FAISCEAU COMPT.CPLT 6.5 |
||||||
|
25 |
Couvercle compteur 6.5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
26 |
AP8112600 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
27 |
AP8112599 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
28 |
Douille tableau de bord |
||||||
|
29 |
Douille montage thermomètre |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
30 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 1 |
||||||
|
31 |
Renv.instr.tabl.bord |
||||||
|
32 |
AP8124388 - REMISE A ZERO More informationQuantity required : 1 |
