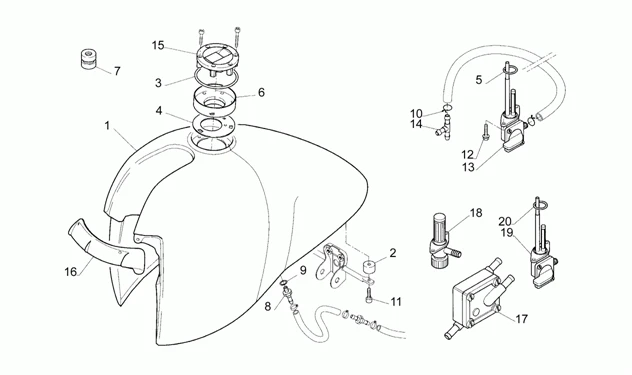

Vehicle Exploded View - APRILIA MOTO 6.5 650 650 1995-1999

	P2R reference
	Maker reference	AP8138217

RESERVOIR ORANGE 6.5

	P2R reference
	Maker reference	AP8138476

RESERVOIR GRIS/NOIR 6.5

	P2R reference
	Maker reference	AP8138480

RESERVOIR ESSENCE GRIS

	P2R reference
	Maker reference	AP8138751

RESERVOIR G/O MOTO 6.5

	P2R reference
	Maker reference	AP8138774

RESERVOIR 6.5 GRIS 2VOIE

	P2R reference	49255
	Maker reference	AP8138775

AP8138775 - RESERVOIR ESSENCE NOIR

	P2R reference	72127
	Maker reference	AP8201124

AP8201124 - CAOUTCHOUC

	P2R reference	71420
	Maker reference	AP8120893

FUEL CAP SEAL GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120893

	P2R reference	71421
	Maker reference	AP8120894

FUEL TANK GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120894-

	P2R reference	46677
	Maker reference	AP8120869

AP8120869 - JOINT TORIQUE

	P2R reference	71186
	Maker reference	AP8102535

CHAMBER FOR FUEL CAP "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, FALCO, FUTURA, TUONO, CAPONORD, 250 RS, 650 PEGASO -AP8102535

	P2R reference	46607
	Maker reference	AP8120459

AP8120459 - SILENTBLOC

	P2R reference	37802
	Maker reference	2B001203

2B001203 - CAOUTCHOUC AVEC INSERT

	P2R reference	71181
	Maker reference	AP8102504

RUBBER SPACER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8102504-

	P2R reference	97054
	Maker reference	AP8102525

AP8102525 - COLLIER ROBINET

	P2R reference	71941
	Maker reference	AP8152277

AP8152277 - VIS BRIDE

	P2R reference	71938
	Maker reference	AP8152272

AP8152272 - VIS BRIDE

	P2R reference
	Maker reference	AP8102554

ROBINET ESSENCE

	P2R reference	71166
	Maker reference	AP8101944

2 WAY UNION (FOR FUEL) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8101944-

	P2R reference	45185
	Maker reference	AP8102583

AP8102583 - BOUCHON RESERVOIR ESSENCE

	P2R reference
	Maker reference	AP8138527

COUVERCLE RADIATEUR 6.5

	P2R reference
	Maker reference	AP8138533

CACHE RADIATEUR 6.5

	P2R reference
	Maker reference	AP8138534

Cache reservoir noir 6.5

	P2R reference	45162
	Maker reference	AP8102408

FUEL PUMP "PIAGGIO GENUINE PART" APRILIA 125-250 SCARABEO, LEONARDO ( ROTAX ENGINE), 125 MOJITO 1999>2001 -AP8102408

	P2R reference
	Maker reference	AP8102692

Robinet ess. dr moto 6.5

	P2R reference	45204
	Maker reference	AP8102693

AP8102693 - ROBINET ESS G MOTO 6.5

	P2R reference
	Maker reference	AP8102439

JOINT TORIQUE ROB ESS 6.
