Vehicle Exploded View - APRILIA MOTO 6.5 650 650 1995-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

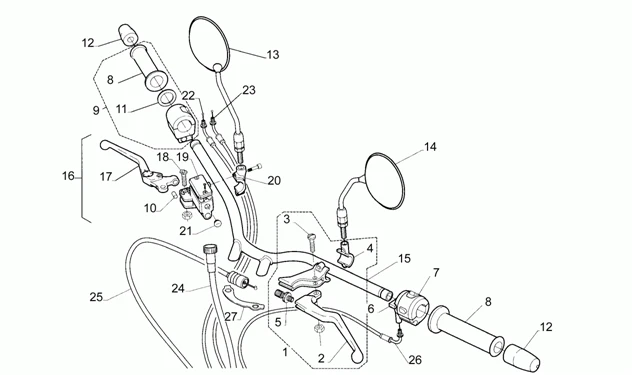

Chassis : 18 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/300/Moto_6.5_650_1995-1999_18.PNG)
1 |
AP8118392 - LEVIER EMBRAYAGE COMPLET More informationQuantity required : 1 |
||||||
|
2 |
AP8118432 - LEVIER EMBRAYAGE NU; More informationQuantity required : 1 |
||||||
|
3 |
Vis cde embr-série; |
||||||
|
4 |
AP8118433 - CAVALIER More informationQuantity required : 1 |
||||||
|
5 |
AP8118348 - REGLAGE LEVIER EMBRAYAGE; More informationQuantity required : 1 |
||||||
|
6 |
Levier starter 6.5 |
||||||
|
7 |
COMODO GAUCHE |
||||||
|
8 |
POIGNEES GRISE 6.5 |
||||||
|
8 |
AP8118453 - PAIRE POIGNEE GRISE More informationQuantity required : 1 |
||||||
|
9 |
AP8118386 - COMMODO D 6.5 More informationQuantity required : 1 |
||||||
|
9 |
COMODO DROIT |
||||||
|
10 |
AP8113522 - TAMPON LEVIER FREIN AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/2/img/67022.jpg)
11 |
562923 - RONDELLE More informationQuantity required : 1 |
||||||
|
12 |
Embout guidon 6.5 |
||||||
|
13 |
Retro droit 6.5 |
||||||
|
14 |
Retro g. 6.5 |
||||||
|
15 |
Guidon 6.5 |
||||||
|
16 |
MAITRE CYLINDRE AVANT 6. |
||||||
|
17 |
AP8118434 - LEVIER DE FREIN AV More informationQuantity required : 1 |
||||||
|
18 |
AP8113058 - PIVOT LEVIER FREIN More informationQuantity required : 1 |
||||||
|
19 |
AP8113599 - BOUCHON M.C + JOINT More informationQuantity required : 1 |
||||||
|
20 |
CAVALIER GUIDON |
||||||
|
21 |
AP8113063 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
22 |
AP8114349 - CABLE GAZ More informationQuantity required : 1 |
||||||
|
23 |
Cable gaz |
||||||
|
23 |
CABL GAZ OUV.6.5*8114350 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/2/1/img/46121.jpg)
24 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" APRILIA 650 MOTO "STARCK" -AP8114348- More informationQuantity required : 1 |
||||||
|
25 |
AP8114352 - CABLE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
26 |
AP8114351 - CABLE STARTER More informationQuantity required : 1 |
||||||
|
27 |
PATTE DE SECURITE GUIDON |
