Vehicle Exploded View - DERBI MULHACEN 125 4T E3 2007-2009 (EMEA) DERBI

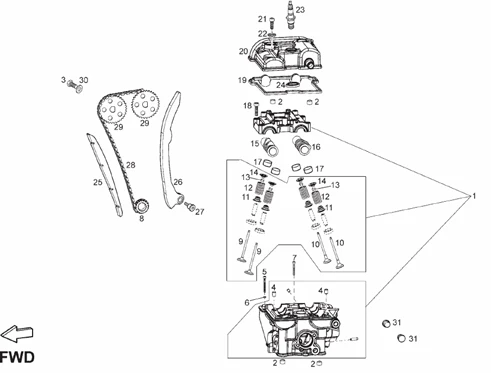

Vues éclatées : 17 CULASSE
Culasse
Search
2A000133 - T?TE CYLINDRE CPL.

1
P2R reference P2R reference 66315
Maker reference Maker reference 2A000133

2A000133 - T?TE CYLINDRE CPL.

More information

Quantity required : 1

AP3FCN000128 - BAGUE 12X13

2
P2R reference P2R reference 71138
Maker reference Maker reference AP3FCN000128

AP3FCN000128 - BAGUE 12X13

More information

Quantity required : 1

AP4ABN000132 - VIS M8X20X1

3
P2R reference P2R reference 71146
Maker reference Maker reference AP4ABN000132

AP4ABN000132 - VIS M8X20X1

More information

Quantity required : 1

AP3FCN000127 - BAGUE 8X13

4
P2R reference P2R reference 71137
Maker reference Maker reference AP3FCN000127

AP3FCN000127 - BAGUE 8X13

More information

Quantity required : 1

SCREW - FOR CYLINDER HEAD M8X166 "PIAGGIO GENUINE PART" APRILIA 125 RS 4 stroke, TUONO 4 stroke, RX 4 stroke, SX 4 stroke -AP3ADN000115-

5
P2R reference P2R reference 71118
Maker reference Maker reference AP3ADN000115

SCREW - FOR CYLINDER HEAD M8X166 "PIAGGIO GENUINE PART" APRILIA 125 RS 4 STROKE, TUONO 4 STROKE, RX 4 STROKE, SX 4 STROKE -AP3ADN000115-

More information

Quantity required : 1

AP3EEN000234 - RONDELLE 8,5X16X1,5

6
P2R reference P2R reference 71136
Maker reference Maker reference AP3EEN000234

AP3EEN000234 - RONDELLE 8,5X16X1,5

More information

Quantity required : 1

AP4ABN000117 - VIS TCEI M6X130

7
P2R reference P2R reference 71145
Maker reference Maker reference AP4ABN000117

AP4ABN000117 - VIS TCEI M6X130

More information

Quantity required : 1

871445 - ROUE

8
P2R reference P2R reference 70368
Maker reference Maker reference 871445

871445 - ROUE

More information

Quantity required : 1

AP3CLA000637 - VOLET 125CC

9
P2R reference P2R reference 71131
Maker reference Maker reference AP3CLA000637

AP3CLA000637 - VOLET 125CC

More information

Quantity required : 1

AP3CLA000636 - SOUPAPE ASPIR. 125CC

10
P2R reference P2R reference 71130
Maker reference Maker reference AP3CLA000636

AP3CLA000636 - SOUPAPE ASPIR. 125CC

More information

Quantity required : 1

854563 - CIRCLIPS

11
P2R reference P2R reference 69685
Maker reference Maker reference 854563

854563 - CIRCLIPS

More information

Quantity required : 1

AP3CHA000237 - RESSORT

12
P2R reference P2R reference 71128
Maker reference Maker reference AP3CHA000237

AP3CHA000237 - RESSORT

More information

Quantity required : 1

843338 - DEMI CONE

13
P2R reference P2R reference 69278
Maker reference Maker reference 843338

843338 - DEMI CONE

More information

Quantity required : 1

AP3CGA000635 - JOINT

14
P2R reference P2R reference 71127
Maker reference Maker reference AP3CGA000635

AP3CGA000635 - JOINT

More information

Quantity required : 1

CAMSHAFT "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, RX, SX, SCARABEO-LIGHT 2010> -AP3CBA000677-

15
P2R reference P2R reference 71126
Maker reference Maker reference AP3CBA000677

CAMSHAFT "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, RX, SX, SCARABEO-LIGHT 2010> -AP3CBA000677-

More information

Quantity required : 1

AP3CBA000675 - ARBRE 125 CC

16
P2R reference P2R reference 71125
Maker reference Maker reference AP3CBA000675

AP3CBA000675 - ARBRE 125 CC

More information

Quantity required : 1

VALVE LIFTER BUCKET (2,65) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 stroke, TUONO 4 stroke, RX, SX 4 stroke -CM222710-

17
P2R reference P2R reference 73390
Maker reference Maker reference CM222710

VALVE LIFTER BUCKET (2,65) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 STROKE, TUONO 4 STROKE, RX, SX 4 STROKE -CM222710-

More information

Quantity required : 1

VALVE LIFTER BUCKET (2,40) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 stroke, TUONO 4 stroke, RX, SX 4 stroke -CM222705

17
P2R reference P2R reference 73385
Maker reference Maker reference CM222705

VALVE LIFTER BUCKET (2,40) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 STROKE, TUONO 4 STROKE, RX, SX 4 STROKE -CM222705

More information

Quantity required : 1

VALVE LIFTER BUCKET (2,75) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 stroke, TUONO 4 stroke, RX, SX 4 stroke -CM222712-

17
P2R reference P2R reference 73392
Maker reference Maker reference CM222712

VALVE LIFTER BUCKET (2,75) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 STROKE, TUONO 4 STROKE, RX, SX 4 STROKE -CM222712-

More information

Quantity required : 1

VALVE LIFTER BUCKET (2,30) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 stroke, TUONO 4 stroke, RX, SX 4 stroke -CM222703-

17
P2R reference P2R reference 73383
Maker reference Maker reference CM222703

VALVE LIFTER BUCKET (2,30) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 STROKE, TUONO 4 STROKE, RX, SX 4 STROKE -CM222703-

More information

Quantity required : 1

VALVE LIFTER BUCKET (2,55) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 stroke, TUONO 4 stroke, RX, SX 4 stroke -CM222708-

17
P2R reference P2R reference 73388
Maker reference Maker reference CM222708

VALVE LIFTER BUCKET (2,55) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 STROKE, TUONO 4 STROKE, RX, SX 4 STROKE -CM222708-

More information

Quantity required : 1

VALVE LIFTER BUCKET (2,50) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 stroke, TUONO 4 stroke, RX, SX 4 stroke -CM222707-

17
P2R reference P2R reference 73387
Maker reference Maker reference CM222707

VALVE LIFTER BUCKET (2,50) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 STROKE, TUONO 4 STROKE, RX, SX 4 STROKE -CM222707-

More information

Quantity required : 1

VALVE LIFTER BUCKET (2,45) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 stroke, TUONO 4 stroke, RX, SX 4 stroke -CM222706

17
P2R reference P2R reference 73386
Maker reference Maker reference CM222706

VALVE LIFTER BUCKET (2,45) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 STROKE, TUONO 4 STROKE, RX, SX 4 STROKE -CM222706

More information

Quantity required : 1

VALVE LIFTER BUCKET (2,70) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 stroke, TUONO 4 stroke, RX, SX 4 stroke -CM222711-

17
P2R reference P2R reference 73391
Maker reference Maker reference CM222711

VALVE LIFTER BUCKET (2,70) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 STROKE, TUONO 4 STROKE, RX, SX 4 STROKE -CM222711-

More information

Quantity required : 1

VALVE LIFTER BUCKET (2,60) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 stroke, TUONO 4 stroke, RX, SX 4 stroke -CM222709-

17
P2R reference P2R reference 73389
Maker reference Maker reference CM222709

VALVE LIFTER BUCKET (2,60) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 STROKE, TUONO 4 STROKE, RX, SX 4 STROKE -CM222709-

More information

Quantity required : 1

VALVE LIFTER BUCKET (2,35) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 stroke, TUONO 4 stroke, RX, SX 4 stroke -CM222704

17
P2R reference P2R reference 73384
Maker reference Maker reference CM222704

VALVE LIFTER BUCKET (2,35) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 STROKE, TUONO 4 STROKE, RX, SX 4 STROKE -CM222704

More information

Quantity required : 1

VALVE LIFTER BUCKET (2,20) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 stroke, TUONO 4 stroke, RX, SX 4 stroke -CM222701-

17
P2R reference P2R reference 73381
Maker reference Maker reference CM222701

VALVE LIFTER BUCKET (2,20) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 STROKE, TUONO 4 STROKE, RX, SX 4 STROKE -CM222701

More information

Quantity required : 1

VALVE LIFTER BUCKET (2,25) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 stroke, TUONO 4 stroke, RX, SX 4 stroke -CM222702

17
P2R reference P2R reference 73382
Maker reference Maker reference CM222702

VALVE LIFTER BUCKET (2,25) "PIAGGIO GENUINE PART" APRILIA 125 RS 4 STROKE, TUONO 4 STROKE, RX, SX 4 STROKE -CM222702

More information

Quantity required : 1

AP4ADN000248 - VIS TCEI M6X40

18
P2R reference P2R reference 71148
Maker reference Maker reference AP4ADN000248

AP4ADN000248 - VIS TCEI M6X40

More information

Quantity required : 1

GASKET - for CYLINDER HEAD COVER "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO LIGHT 2007>, 125 RS4 2011>, TUONO 2017> -873651

19
P2R reference P2R reference 70496
Maker reference Maker reference 873651

GASKET - FOR CYLINDER HEAD COVER "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO LIGHT 2007>, 125 RS4 2011>, TUONO 2017> -873651

More information

Quantity required : 1

871705 - COUVERCLE

20
P2R reference P2R reference 70394
Maker reference Maker reference 871705

871705 - COUVERCLE

More information

Quantity required : 1

AP3ATN000118 - VIS

21
P2R reference P2R reference 71119
Maker reference Maker reference AP3ATN000118

AP3ATN000118 - VIS

More information

Quantity required : 1

O'RING GASKET FOR ROCKER COVER SCREW "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO LIGHT 2007>, 125 RS4 2011> -AP3CAA000399-

22
P2R reference P2R reference 71123
Maker reference Maker reference AP3CAA000399

O'RING GASKET FOR ROCKER COVER SCREW "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO LIGHT 2007>, 125 RS4 2011> -AP3CAA000399-

More information

Quantity required : 1

SPARK PLUG "PIAGGIO GENUINE PART" CR8EB COMMON TO ALL THE MAXISCOOTER RANGE -638853-

23
P2R reference P2R reference 67814
Maker reference Maker reference 638853

SPARK PLUG "PIAGGIO GENUINE PART" CR8EB COMMON TO ALL THE MAXISCOOTER RANGE -638853-

More information

Quantity required : 1

CENTRAL ROCKER COVER GASKET+C6328:C6329 "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO LIGHT 2007>, 125 RS4 2011> -874617-

24
P2R reference P2R reference 70543
Maker reference Maker reference 874617

CENTRAL ROCKER COVER GASKET+C6328:C6329 "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO LIGHT 2007>, 125 RS4 2011> -874617-

More information

Quantity required : 1

AP3DDA000379 - DOIGT

25
P2R reference P2R reference 71133
Maker reference Maker reference AP3DDA000379

AP3DDA000379 - DOIGT

More information

Quantity required : 1

AP3DDA000380 - DOIGT

26
P2R reference P2R reference 71134
Maker reference Maker reference AP3DDA000380

AP3DDA000380 - DOIGT

More information

Quantity required : 1

AP3AVN000197 - VIS

27
P2R reference P2R reference 71120
Maker reference Maker reference AP3AVN000197

AP3AVN000197 - VIS

More information

Quantity required : 1

AP2DCA000254 - CHAINE

28
P2R reference P2R reference 71109
Maker reference Maker reference AP2DCA000254

AP2DCA000254 - CHAINE

More information

Quantity required : 1

AP3DBA000640 - COURONNE

29
P2R reference P2R reference 71132
Maker reference Maker reference AP3DBA000640

AP3DBA000640 - COURONNE

More information

Quantity required : 1

AP3DVN000235 - RONDELLE 8,25X23X4

30
P2R reference P2R reference 71135
Maker reference Maker reference AP3DVN000235

AP3DVN000235 - RONDELLE 8,25X23X4

More information

Quantity required : 1

00G01800751 - BOUCHON

31
P2R reference P2R reference 188034
Maker reference Maker reference 00G01800751

00G01800751 - BOUCHON

More information

Quantity required : 1
