Vehicle Exploded View - DERBI MULHACEN 125 4T E3 2007-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

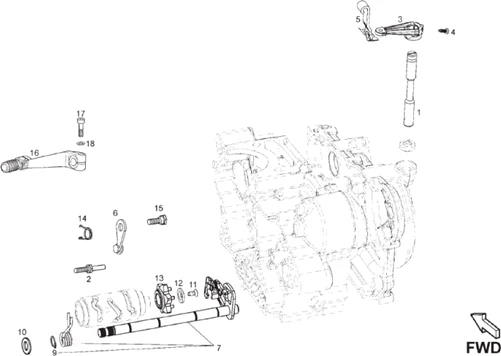

Vues éclatées : 19 SELECTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1111/Mulhacen_125_4T_E3_2007-2009_(EMEA)_19.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/6/img/69456.jpg)
1 |
CLUTCH OUTPUT SHAFT "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX, RS -847083 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/2/6/8/img/142268.jpg)
2 |
SCREW - FOR GEARBOX SELECTOR RETURN SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -B017981 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/7/0/img/73270.jpg)
3 |
CLUTCH RELEASE SHAFT "PIAGGIO GENUINE PART" 50 APRILIA RS4 2011> -CM151201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
4 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152 More informationQuantity required : 1 |
||||||
4 |
AP8152060 - VIS More informationQuantity required : 1 |
||||||
|
5 |
873566 - BUTEE DE ROULEMENT More informationQuantity required : 1 |
||||||
|
6 |
871554 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/8/4/img/146184.jpg)
7 |
GEARBOX SELECTOR SHAFT "PIAGGIO GENUINE PART" APRILIA 50-125 RS4 2011>2017, 125 TUONO 2017>, RX, SX 2018> -1A006754 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/9/img/63799.jpg)
9 |
005970 - BAGUE S00597000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/8/img/69498.jpg)
10 |
GEARBOX SELECTOR AXLE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847228 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/9/img/127169.jpg)
11 |
SCREW - FOR GEARBOX "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -1A003116 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/7/img/69487.jpg)
12 |
GEARBOX SELECTOR WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847214 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/3/img/69423.jpg)
13 |
SHIFT CAM PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 RX 2006>, SX 2006 -847038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/0/img/149170.jpg)
14 |
GEARBOX SELECTOR SPRING "PIAGGIO GENUINE PART" GILERA/APRILIA -1A010665 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/2/2/img/151722.jpg)
15 |
SCREW FOR BRAKE PADS/GEARBOX SELECTOR AXLE "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -1A010690 More informationQuantity required : 1 |
||||||
|
16 |
863251 - LEVIER BOITE DE VITESSES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
17 |
AP8150165 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/0/img/63790.jpg)
18 |
00442060002 - RONDELLE A RESSORT D6 More informationQuantity required : 1 |
