Vehicle Exploded View - DERBI MULHACEN 125 4T E3 2007-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

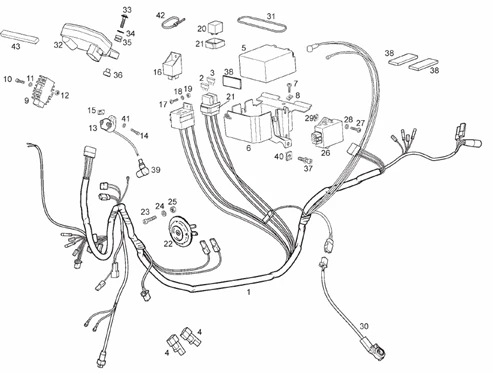

Vues éclatées : 8 CIRCUIT ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1111/Mulhacen_125_4T_E3_2007-2009_(EMEA)_8.png)
1 |
865601 - CIRCUIT ELECTRIQUE More informationQuantity required : 1 |
|||||||||
|
2 |
00G01002911 - FUSIBLE More informationQuantity required : 1 |
|||||||||
|
3 |
864648 - FUSIBLE More informationQuantity required : 1 |
|||||||||
|
4 |
864565 - DIODE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/5/img/67305.jpg)
5 |
584662 - BATTERIE YUASA YTX7L-BS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/6/9/4/8/img/136948.jpg)
5 |
BATTERY 12V 6 AH BTX7L-BS "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, 50 VESPA LX, VESPA S, PRIMAVERA, 125 MEDLEY, VESPA GTS/APRILIA 125 RS, 50 SR (LG114XL70XH131) -1R000317- More informationQuantity required : 1 |
|||||||||
|
6 |
863619 - BOITE BATTERIE COMP. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/7/img/67187.jpg)
9 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
10 |
AP8150165 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
11 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
12 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/6/img/67186.jpg)
13 |
IGNITION COIL "PIAGGIO GENUINE PART" 125 MP3, FLY, X8, X9-EVO, ZIP, X-EVO/GILERA 125 NEXUS, RUNNER 4 STROKE/APRILIA 125 SPORT-CITY-ONE -58083R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/4/img/63614.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING (5M80X15) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002052051 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
15 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
16 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/7/img/69497.jpg)
17 |
847227 - BOULON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
18 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
|||||||||
|
19 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
|||||||||
|
20 |
864506 - RELAIS More informationQuantity required : 1 |
|||||||||
|
21 |
942577 - SUPPORT RELAIS More informationQuantity required : 1 |
|||||||||
|
22 |
863339 - KLAXON More informationQuantity required : 1 |
|||||||||
|
22 |
864458 - SCTO.CLAXON 12V TER125 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
23 |
AP8150169 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
24 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/7/img/63767.jpg)
25 |
00262080022 - ECROU More informationQuantity required : 1 |
|||||||||
|
26 |
58191R - UNITE CDI More informationQuantity required : 1 |
|||||||||
|
27 |
847227 - BOULON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
28 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 1 |
|||||||||
|
29 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/8/7/img/69687.jpg)
30 |
STAND SWITCH "PIAGGIO GENUINE PART" APRILIA ATALANTIC 125-300-400, SCARABEO 400-500, CAPONORD, RS 125, RS 50, RSV 1000, TUONO 1000/MOTO GUZZI BREVA, NEVADA -00N05700601 More informationQuantity required : 1 |
|||||||||
|
31 |
00G01802361 - SOUS-ENS.BRIDE FIX.BATTERIE More informationQuantity required : 1 |
|||||||||
|
32 |
863455 - CTO.TABLIER MUL125 More informationQuantity required : 1 |
|||||||||
|
33 |
|
|||||||||
|
33 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
34 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
|||||||||
|
35 |
00D01600941 - SILENBLOC More informationQuantity required : 1 |
|||||||||
|
36 |
863760 - BAGUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/5/img/63895.jpg)
37 |
00D05910081 - VIS More informationQuantity required : 1 |
|||||||||
|
38 |
862286 - ARRET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/9/1/img/67891.jpg)
39 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO 2007>2010 -640637- More informationQuantity required : 1 |
|||||||||
|
40 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
|||||||||
|
41 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
42 |
00F00900531 - COLLIER More informationQuantity required : 1 |
|||||||||
|
43 |
864571 - ARRET More informationQuantity required : 1 |
|||||||||
