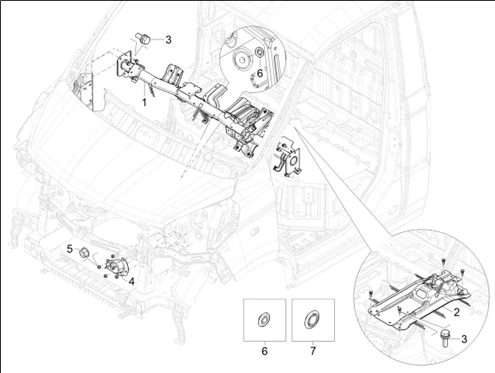

Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 PORTER NPE 2650 PIAGGIO VU

04_châssis - carrosseries : 04.05 05_COMPOSANTS DES CHÂSSIS/CAISSE
05_Composants des châssis/caisse
Search
Instrument Panel Hollow Beam Assembly

1
P2R reference P2R reference
Maker reference Maker reference WET50A071702A0

Instrument Panel Hollow Beam Assembly

WET50A080101A0 - SECOND. DASHBOARD MOUNT. BEACKET ASSY

2
P2R reference P2R reference 216030
Maker reference Maker reference WET50A080101A0

WET50A080101A0 - SECOND. DASHBOARD MOUNT. BEACKET ASSY

More information

Quantity required : 1

WQ146B0825F62 - VIS AVEC DOUBLE RONDELLE

3
P2R reference P2R reference 173346
Maker reference Maker reference WQ146B0825F62

WQ146B0825F62 - VIS AVEC DOUBLE RONDELLE

More information

Quantity required : 10

WL0500300175A0 - PATTE SUPPORT EMETTEUR D'EMBRAYAGE

4
P2R reference P2R reference 173374
Maker reference Maker reference WL0500300175A0

WL0500300175A0 - PATTE SUPPORT EMETTEUR D'EMBRAYAGE

More information

Quantity required : 1

WQ32008F61 - ÉROU HEXAGONAL BRIDE

5
P2R reference P2R reference 173208
Maker reference Maker reference WQ32008F61

WQ32008F61 - ÉROU HEXAGONAL BRIDE

More information

Quantity required : 4

WC3826010002A0 - BOUCHON EN CAOUTCHOUC

6
P2R reference P2R reference 173476
Maker reference Maker reference WC3826010002A0

WC3826010002A0 - BOUCHON EN CAOUTCHOUC

More information

Quantity required : 1

WB1112012 - BOUCHON EN CAOUTCHOUC

7
P2R reference P2R reference 173478
Maker reference Maker reference WB1112012

WB1112012 - BOUCHON EN CAOUTCHOUC

More information

Quantity required : 11
