Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 PORTER NPE 2650
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

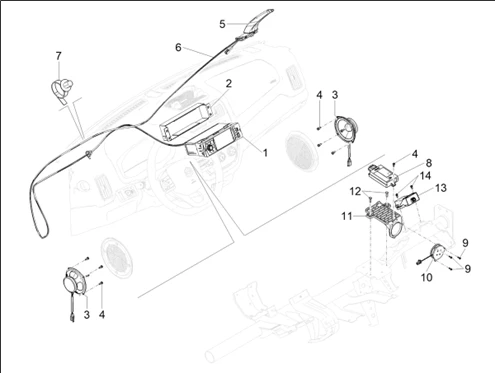

11_circuit électrique : 11.11 11_IMPIANTO STEREO - E-CALL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1318/PORTER_NPE_2650_11.11.png)
1 |
WL0525020033A0 - PULVERISATEUR More informationQuantity required : 1 |
||||||
|
2 |
WET535110900A0 - RACKET RADIO SUPPORT More informationQuantity required : 1 |
||||||
|
3 |
WL079100000127 - SPEAKER ASSEMBLY More informationQuantity required : 2 |
||||||
|
4 |
WQ220B4816F61 - CROSS SLOTTED CAP SCREW WITH WASHER More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/9/0/img/173890.jpg)
5 |
WET791030701A0 - ANTENNA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/9/1/img/173891.jpg)
6 |
WET791030300A0 - ANTENNA CABLE ASSEMBLY More informationQuantity required : 1 |
||||||
|
7 |
WL0362080004A0 - SPECIAL TIE STRIP More informationQuantity required : 1 |
||||||
|
8 |
EMERGENCY CALL DEVICE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/9/7/img/173897.jpg)
9 |
WQ2713516F62 - PAN HEAD SELF TAPPING SCREW More informationQuantity required : 3 |
||||||
|
10 |
WET791020100A0 - ECALL LOUDSPEAKER More informationQuantity required : 1 |
||||||
|
11 |
WET37400000027 - ECALL BRACKET More informationQuantity required : 1 |
||||||
|
12 |
WQ1840620F61 - HEXAGON HEAD BOLT WITH FLANGE More informationQuantity required : 2 |
||||||
|
13 |
WET38500000001 - RFR ANTENNA More informationQuantity required : 1 |
||||||
|
14 |
WQ1840616F61 - VIS A TETE HEXAGONALE BRIDEE More informationQuantity required : 2 |
