Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 PORTER NPE 2650
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

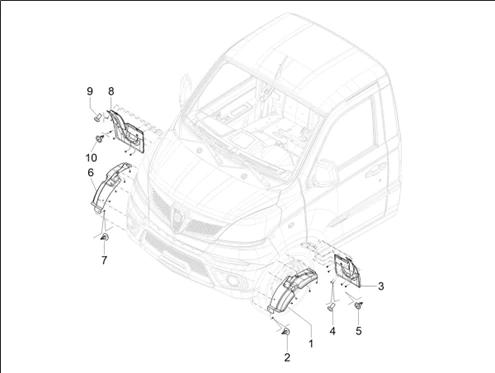

05_châssis - plastiques : 05.04 04_LOGEMENT ROUE-GARDE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1318/PORTER_NPE_2650_05.04.png)
1 |
WET54300000001 - GARDE-BOUE AVANT SUPERIEUR GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/8/3/img/173483.jpg)
2 |
WC3531010002A0 - BOUTON PRESSION DE FIXATION More informationQuantity required : 5 |
||||||
|
3 |
WC3531010002A0 - BOUTON PRESSION DE FIXATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/0/5/img/173505.jpg)
4 |
WQ2140612F62 - CROSS RECESSED PAN HEAD SCREW M6X12 More informationQuantity required : 2 |
||||||
|
5 |
WC3531010002A0 - BOUTON PRESSION DE FIXATION More informationQuantity required : 4 |
||||||
|
6 |
WET54300000002 - GARDE-BOUE AVANT SUPERIEUR DROITE More informationQuantity required : 1 |
||||||
|
7 |
WC3531010002A0 - BOUTON PRESSION DE FIXATION More informationQuantity required : 5 |
||||||
|
8 |
WC3531010002A0 - BOUTON PRESSION DE FIXATION More informationQuantity required : 1 |
||||||
|
9 |
WQ2140612F62 - CROSS RECESSED PAN HEAD SCREW M6X12 More informationQuantity required : 2 |
||||||
|
10 |
WC3531010002A0 - BOUTON PRESSION DE FIXATION More informationQuantity required : 4 |
