Vehicle Exploded View - DERBI QUAD 50 QUAD DFW 50cc 2004 E2 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

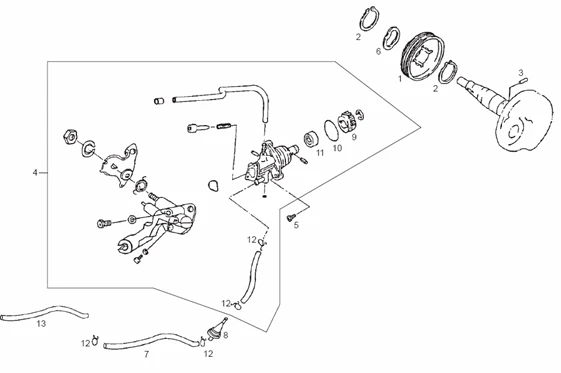

Tables : 21 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1104/QUAD_DFW_50cc_2004_E2_3ª_edicion_21.png)
1 |
00Q03800381 - PIÐON BOMBA AGUA More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
3 |
00Q03300231 - CHAVETA More informationQuantity required : 1 |
||||||
|
4 |
00Q03700021 - BOMBA ACEITE More informationQuantity required : 1 |
||||||
|
5 |
00000012516 - VIS More informationQuantity required : 1 |
||||||
|
6 |
00Q05000281 - ARANDELA More informationQuantity required : 1 |
||||||
|
7 |
00Q03700221 - TUBO ACEITE More informationQuantity required : 1 |
||||||
|
8 |
00Q03700411 - FILTRO ACEITE More informationQuantity required : 1 |
||||||
|
9 |
00Q03700091 - PIÐON More informationQuantity required : 1 |
||||||
|
10 |
00Q03700041 - ANILLO More informationQuantity required : 1 |
||||||
|
11 |
00Q03700361 - CASQUILLO More informationQuantity required : 1 |
||||||
|
12 |
00Q03701181 - BRIDA More informationQuantity required : 1 |
||||||
|
13 |
00Q03700111 - TAPA More informationQuantity required : 1 |
