Vehicle Exploded View - DERBI QUAD 50 QUAD DFW 50cc 2004 E2 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

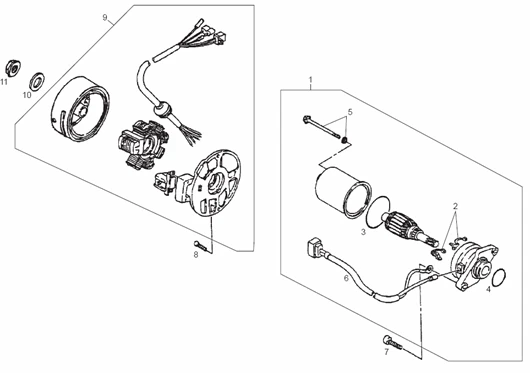

Tables : 23 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1104/QUAD_DFW_50cc_2004_E2_3ª_edicion_23.png)
1 |
00Q03900891 - MOTOR ARRANQUE More informationQuantity required : 1 |
||||||
|
2 |
00Q03900941 - ESCOBILLAS More informationQuantity required : 1 |
||||||
|
3 |
00Q03900701 - ARANDELA More informationQuantity required : 1 |
||||||
|
4 |
00Q03900131 - ARANDELA More informationQuantity required : 1 |
||||||
|
5 |
00Q03900951 - TORNILLO More informationQuantity required : 1 |
||||||
|
6 |
00Q03900681 - CABLE MOTOR ARRQ. More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
|
||||||
|
9 |
00Q03300011 - VOLANTE ELECTRICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/7/img/63597.jpg)
10 |
00000031100 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
|
