Vehicle Exploded View - DERBI QUAD 50 QUAD DFW 50cc 2004 E2 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

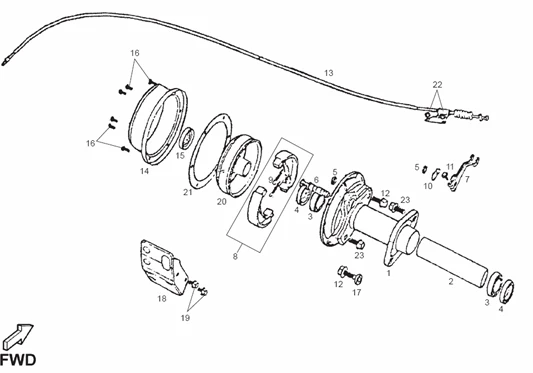

Tables : 4 FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1104/QUAD_DFW_50cc_2004_E2_3ª_edicion_4.png)
1 |
00Q01300511 - ARRASTRADOR FRENO More informationQuantity required : 1 |
||||||
|
2 |
00Q01300191 - SEPARADOR More informationQuantity required : 1 |
||||||
|
3 |
00Q01300281 - CASQUILLO More informationQuantity required : 1 |
||||||
|
4 |
00Q01300961 - JUNTA More informationQuantity required : 1 |
||||||
|
5 |
00Q01300971 - JUNTA More informationQuantity required : 1 |
||||||
|
6 |
00Q01300251 - EJE GIRO MORDAZAS More informationQuantity required : 1 |
||||||
|
7 |
00Q01300111 - PALANCA FRENO TR. More informationQuantity required : 1 |
||||||
|
8 |
00Q01300931 - MORDAZAS FRENO TR. More informationQuantity required : 1 |
||||||
|
9 |
00Q01300831 - MUELLE MORDAZAS More informationQuantity required : 1 |
||||||
|
10 |
00Q01300601 - MUELLE RETORNO More informationQuantity required : 1 |
||||||
|
11 |
00Q01101171 - TORNILLO 6 X 30 More informationQuantity required : 1 |
||||||
|
12 |
00Q01302271 - TORNILLO 12 X 27 More informationQuantity required : 1 |
||||||
|
13 |
00Q00901431 - CABLE FRENO TR More informationQuantity required : 1 |
||||||
|
14 |
00Q01300951 - TAPA FRENO TRAS. More informationQuantity required : 1 |
||||||
|
15 |
00Q01300341 - RETEN More informationQuantity required : 1 |
||||||
|
16 |
|
||||||
|
17 |
ARAND.PLANA MECANIZ. D12 DIN125 ZnB |
||||||
|
18 |
00Q01300481 - TAPA FRENO More informationQuantity required : 1 |
||||||
|
19 |
00Q01300491 - TORNILLO 8X12 More informationQuantity required : 1 |
||||||
|
20 |
00Q02400361 - TAPA MORDAZAS More informationQuantity required : 1 |
||||||
|
21 |
00Q01300531 - ARO MORDAZAS More informationQuantity required : 1 |
||||||
|
22 |
00000023080 - ECROU INDESSERABLE 8M125 More informationQuantity required : 1 |
||||||
|
23 |
00Q01301271 - TORNILLO 12X22 More informationQuantity required : 1 |
