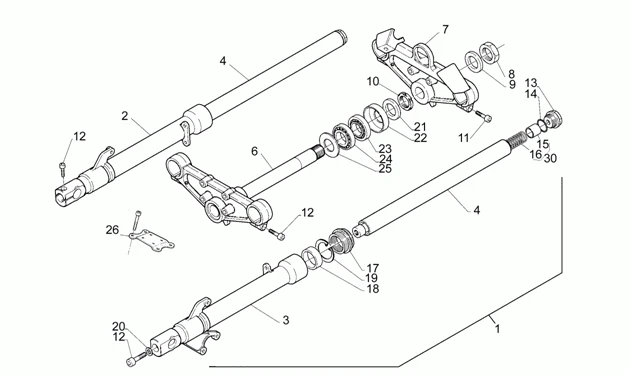

Chassis : 16 FOURCHE AV. MARZOCCHI
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/265/RS_50_1993-1995_16.PNG)
1 |
AP8203576 - FOURCHE COMPLETE More informationQuantity required : 1 |
||||||
|
2 |
Fourreau D |
||||||
|
3 |
Fourreau G |
||||||
|
4 |
AP8203584 - TIGE COMPLET More informationQuantity required : 2 |
||||||
|
6 |
Base avec tube |
||||||
|
7 |
Plaque sup. fourche |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/9/img/72159.jpg)
8 |
AP8203251 - BOUCHON TUBE More informationQuantity required : 1 |
||||||
|
9 |
RONDELLE FIXATION TUBE |
||||||
|
10 |
AP8203588 - BAGUE INFERIEUR FOURCHE More informationQuantity required : 1 |
||||||
|
11 |
Vis |
||||||
|
12 |
AP8203590 - VIS More informationQuantity required : 4 |
||||||
|
13 |
Bouchon |
||||||
|
14 |
Joint torique |
||||||
|
15 |
Entretoise; |
||||||
|
16 |
AP8203748 - RESSORT; More informationQuantity required : 1 |
||||||
|
17 |
AP8203564 - PARE-POUSSIERE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/5/2/4/img/55524.jpg)
18 |
AP8203565 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
19 |
Bague de butée |
||||||
|
20 |
Joint; |
||||||
|
21 |
AP8101272 - ANNEAU SUPPORT PARE-POUSSIERE More informationQuantity required : 1 |
||||||
|
22 |
AP8120211 - PARE-POUSSIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/1/7/img/45817.jpg)
23 |
STEERING COLUMN BEARING ( UPPER) "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO -AP8110025- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/6/img/71266.jpg)
24 |
STEERING COLUMN BEARING (LOWER) "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO -AP8110024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/5/img/45095.jpg)
25 |
AP8101271 - ANNEAU RACLEUR INF. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/8/4/img/45284.jpg)
26 |
STIFFENING PLATE "PIAGGIO GENUINE PART" APRILIA 50 RS, AFI, TUONO, EUROPA -AP8103705- More informationQuantity required : 1 |
||||||
|
30 |
ENTRETOISE AVEC RESSORT |
