Vehicle Exploded View - APRILIA RS 50 1993-1995
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

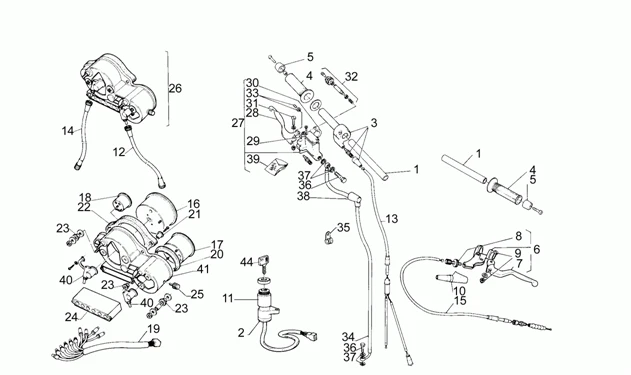

Chassis : 21 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/265/RS_50_1993-1995_21.PNG)
1 |
Demi-guidon cpl; |
||||||
|
2 |
FAISCEAU COMODO |
||||||
|
3 |
Commande gaz-poignées; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/7/img/46297.jpg)
4 |
AP8118287 - COUPLE MANETTES; More informationQuantity required : 1 |
||||||
|
5 |
AP8104574 - MASSE ANTI VIBRATOIRE More informationQuantity required : 2 |
||||||
|
6 |
AP8218054 - COMMANDE EMBRAY.8218056 More informationQuantity required : 1 |
||||||
|
7 |
AP8218061 - LEVIER EMBRAYAGE NU; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/8/7/img/46287.jpg)
8 |
CLUTCH LEVER ADJUSTER "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, PEGASO, EUROPA, TUAREG, CLASSIC, AF1 -AP8118104- More informationQuantity required : 1 |
||||||
|
9 |
Vis cde embr-série; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/4/img/46594.jpg)
10 |
AP8120271 - CACHE-REGLAGE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
11 |
AP8212342 - BLOC DEMARREUR-BLOC More informationQuantity required : 1 |
||||||
|
12 |
Cable de compteur rs50 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/3/2/img/56532.jpg)
13 |
TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 50 RS 1993>1998, AF1 -AP8214085- More informationQuantity required : 1 |
||||||
|
14 |
AP8214183 - CABLE COMPTE-TOURS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/3/3/img/56533.jpg)
15 |
TRANSMISSION CLUTCH CABLE "PIAGGIO GENUINE PART" APRILIA 50 RS 1993>1998, AF1 -AP8214086- More informationQuantity required : 1 |
||||||
|
15 |
AP8214148 - CABLE EMBRAYAGE; More informationQuantity required : 1 |
||||||
|
16 |
Compte-tours |
||||||
|
17 |
AP8212983 - COMPTEUR KILOMETRIQUE; More informationQuantity required : 1 |
||||||
|
18 |
AP8212448 - THERMOMETRE EAU More informationQuantity required : 1 |
||||||
|
19 |
Câblage tbl.bord+lampes |
||||||
|
20 |
AP8120759 - JOINT TACHYMETRE More informationQuantity required : 1 |
||||||
|
21 |
AP8102216 - DOUILLE FIXATION REMBOURRAGE More informationQuantity required : 1 |
||||||
|
22 |
Rembourrage pour tachymètre |
||||||
|
23 |
AP8120760 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
24 |
AP8220275 - BO?TIER TEMOINS More informationQuantity required : 1 |
||||||
|
25 |
AP8102217 - POUSSOIR RAZ More informationQuantity required : 1 |
||||||
|
26 |
Tableau de bord; |
||||||
|
27 |
Maît. cyl. frein AV |
||||||
|
28 |
AP8218074 - LEVIER FREIN NU; More informationQuantity required : 1 |
||||||
|
29 |
AP8213477 - COUVERCLE RESERVOIR; More informationQuantity required : 1 |
||||||
|
30 |
AP8213078 - CAVALIER More informationQuantity required : 1 |
||||||
|
31 |
Vis levier pompe |
||||||
|
32 |
Piston |
||||||
|
33 |
Goupille spéc+écrou |
||||||
|
34 |
Tube frein AV |
||||||
|
35 |
AP8134167 - PLAQUETTE TUYAU FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
36 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
37 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
|
38 |
Protect. canalis. |
||||||
|
39 |
AP8213339 - KIT REVISION POMPE More informationQuantity required : 1 |
||||||
|
39 |
Kit joints pompe |
||||||
|
40 |
Renv.instr.tabl.bord |
||||||
|
41 |
Base support instruments; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
44 |
AP8104613 - "CLE ""APRILIA"" SANS TRANSPO." More informationQuantity required : 2 |
