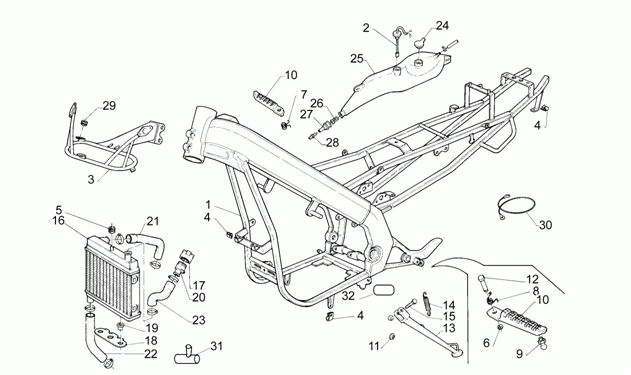

Vehicle Exploded View - APRILIA RS 50 1993-1995

	P2R reference
	Maker reference	AP8232867

CADRE AVEC CATAFORESI

	P2R reference
	Maker reference	AP8232889

CADRE PEINT + CATAFORESI

	P2R reference
	Maker reference	AP8232970

Châssis, gris;

	P2R reference	55341
	Maker reference	AP8201192

AP8201192 - INDICATEUR RESERVE HUILE

	P2R reference
	Maker reference	AP8232767

SUPPORT=8232931

	P2R reference	58039
	Maker reference	AP8232931

AP8232931 - CADRE P-INSTRUM. SAB.CAT.;

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	71384
	Maker reference	AP8120030

AP8120030 - CAOUTCHOUC

	P2R reference	71404
	Maker reference	AP8120573

STOP RING FOR FOOTREST "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA +MOTO-GUZZI MOTORBIKE RANGE -AP8120573-

	P2R reference
	Maker reference	AP8221181

Res.rap. pl. pil. D

	P2R reference
	Maker reference	AP8221182

Res.rap. pl. pil. G

	P2R reference	71438
	Maker reference	AP8121134

AP8121134 - PIVOT FRICTION R-PIED

	P2R reference	163688
	Maker reference	AP8135313

AP8135313 - R-PIED PILOTE-PAIRE;

	P2R reference	71482
	Maker reference	AP8121697

AP8121697 - RESSORT A GODET

	P2R reference	56997
	Maker reference	AP8221057

FOOTREST PIN "PIAGGIO GENUINE PART" APRILIA 50-125 RS, 50 EUROPA, CLASSIC -AP8221057-

	P2R reference
	Maker reference	AP8232727

CAVALLETTO SABB.CATAF.VE

	P2R reference
	Maker reference	AP8232869

BEQUILLE SABLE

	P2R reference
	Maker reference	AP8232915

Béquille latérale cat.noir;

	P2R reference	46919
	Maker reference	AP8121695

AP8121695 - RESS.HEL.CYL.TRACT.

	P2R reference	46920
	Maker reference	AP8121696

AP8121696 - RESS.HEL.CYL.TRACT.

	P2R reference	55336
	Maker reference	AP8201002

AP8201002 - RESSORT

	P2R reference
	Maker reference	AP8152048

Vis 10 x 30

	P2R reference	50978
	Maker reference	AP8152310

AP8152310 - VIS FIX. BEQUILLE

	P2R reference	55359
	Maker reference	AP8201476

AP8201476 - RADIATEUR;

	P2R reference	55357
	Maker reference	AP8201463

COOLANT RADIATOR CAP "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, 125-250 SCARABEO, LEONARDO, 400-500 SCARABEO, ATLANTIC -AP8201463-

	P2R reference
	Maker reference	AP8232491

SUPPORT RADIATEUR (PL)

	P2R reference	46595
	Maker reference	AP8120275

AP8120275 - SILENTBLOC

	P2R reference	55351
	Maker reference	AP8201312

AP8201312 - TUBULURE REMPLISSAGE

	P2R reference
	Maker reference	AP8220265

Tube de culasse radiateur

	P2R reference	56856
	Maker reference	AP8220280

AP8220280 - TUBE POMPE RADIATEUR

	P2R reference
	Maker reference	AP8220406

Tube radiat.-raccord

	P2R reference
	Maker reference	AP8220417

Tuyau pompe raccord

	P2R reference	56848
	Maker reference	AP8220235

AP8220235 - TUBE REMPL. RADIAT.

	P2R reference	56833
	Maker reference	AP8220154

AP8220154 - BOUCHON RESERVOIR HUILE

	P2R reference
	Maker reference	AP8231212

Réservoir huile;

	P2R reference	71170
	Maker reference	AP8102224

OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224-

	P2R reference	45142
	Maker reference	AP8102223

RUBBER SPACER FOR OIL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA 50-125 -AP8102223

	P2R reference	71166
	Maker reference	AP8101944

2 WAY UNION (FOR FUEL) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8101944-

	P2R reference	72271
	Maker reference	AP8220150

AP8220150 - CAOUTCHOUC

	P2R reference	55374
	Maker reference	AP8201611

AP8201611 - CABLE ACCROCHAGE CASQUE

	P2R reference	56881
	Maker reference	AP8220415

"TEE" UNION "PIAGGIO GENUINE PART" APRILIA 50 CLASSIC, RS, SX, RX -AP8220415-

	P2R reference	48907
	Maker reference	AP8134266

AP8134266 - PLAQUETTE RETOUR BEQUILLE;
