Vehicle Exploded View - MOTO-GUZZI SPORT 1200 Sport 1200 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

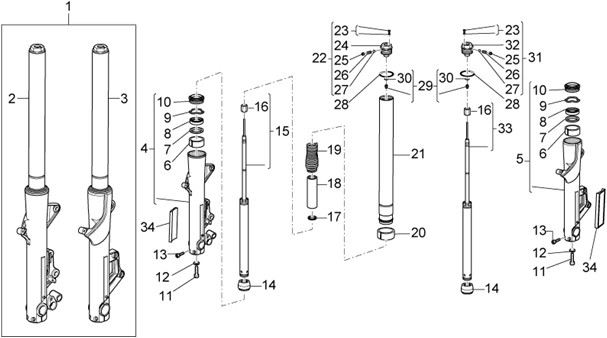

Chassis : 33.07 FOURCHE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/516/Sport_1200_2006-2007_33.07.PNG)
1 |
977827 - GRUPPO STELI FORCELLA BREVAS More informationQuantity required : 1 |
||||||
|
2 |
978173 - STELO DX D45 More informationQuantity required : 1 |
||||||
|
3 |
978174 - STELO SX D45 More informationQuantity required : 1 |
||||||
|
4 |
GU05490630 - FOURREAU D More informationQuantity required : 1 |
||||||
|
5 |
GU05490730 - FOURREAU G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/2/4/img/72024.jpg)
6 |
FORK BUSH "PIAGGIO GENUINE PART" MOTO-GUZZI BELAGIO, BREVA, CALIFORNIA, NORGE -AP8163093- More informationQuantity required : 2 |
||||||
|
7 |
AP8163094 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/2/6/img/72026.jpg)
8 |
FORK OIL SEAL "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, STELVIO, BREVA, 1400 CALIFORNIA, 940 BELLAGIO/APRILIA 650 PEGASO -AP8163095 More informationQuantity required : 2 |
||||||
|
9 |
AP8163096 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/2/8/img/72028.jpg)
10 |
DUST COVER -AP8163097 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/9/img/133189.jpg)
11 |
GU98682535 - VIS M10X35 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/2/3/img/72023.jpg)
12 |
AP8163091 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/5/img/133155.jpg)
13 |
GU98680340 - VIS M6X40 More informationQuantity required : 4 |
||||||
|
14 |
978176 - ADATTATORE CENTR POMPA More informationQuantity required : 2 |
||||||
|
15 |
978175 - GR. ASTA DX More informationQuantity required : 1 |
||||||
|
16 |
GU03530513 - CONTRE-ECROU More informationQuantity required : 2 |
||||||
|
17 |
978178 - ROND APPOGGIO MOLLA More informationQuantity required : 2 |
||||||
|
18 |
978177 - TUB.TO PREC More informationQuantity required : 2 |
||||||
|
19 |
GU05526630 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/2/9/img/72029.jpg)
20 |
LOWER FORK BUSH "PIAGGIO GENUINE PART" MOTO-GUZZI 850-1200 NORGE, BREVA, 940 BELLAGIO, 1100 CALIFORNIA -AP8163098- More informationQuantity required : 2 |
||||||
|
21 |
978179 - CANNA 45 More informationQuantity required : 2 |
||||||
|
22 |
978180 - GR. TAPPO DX More informationQuantity required : 2 |
||||||
|
23 |
AP8163369 - VITE CPL.TCIC M4X6 More informationQuantity required : 2 |
||||||
|
24 |
978184 - ADESIVO "REBOUND" More informationQuantity required : 2 |
||||||
|
25 |
978183 - GRANO More informationQuantity required : 2 |
||||||
|
26 |
Ressort |
||||||
|
27 |
SFERA D.3 |
||||||
|
28 |
AP8163104 - JOINT TORIQUE; More informationQuantity required : 2 |
||||||
|
29 |
AP8163370 - GRANO + OR More informationQuantity required : 2 |
||||||
|
30 |
AP8163143 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
31 |
978187 - GR. TAPPO SX More informationQuantity required : 2 |
||||||
|
32 |
978185 - ADESIVO "COMPRESSION" More informationQuantity required : 2 |
||||||
|
33 |
978186 - GR. ASTA SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/4/img/73444.jpg)
34 |
GU05781630 - CATADIOPTRE, AMBRE More informationQuantity required : 2 |
