Vehicle Exploded View - MOTO-GUZZI SPORT 1200 Sport 1200 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

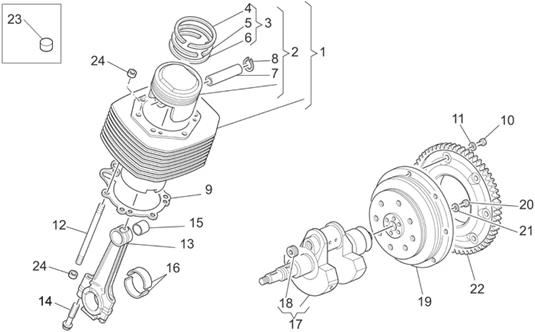

Moteur : 34.46 ARBRE MOTEUR CPL.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/516/Sport_1200_2006-2007_34.46.PNG)
1 |
976182 - ASS. PISTONE/CILINDRO X 95 More informationQuantity required : 2 |
||||||
|
2 |
976069 - ASS. PISTONE X 95 More informationQuantity required : 2 |
||||||
|
3 |
976183 - KIT FASCE ELASTICHE More informationQuantity required : 2 |
||||||
|
4 |
976070 - FASCIA SEGMENTO I0 CAVA More informationQuantity required : 2 |
||||||
|
5 |
976071 - FASCIA SEGMENTO II0 CAVA More informationQuantity required : 2 |
||||||
|
6 |
976072 - FASCIA SEGMENTO III0 CAVA More informationQuantity required : 2 |
||||||
|
7 |
GU30061241 - AXE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/9/img/70539.jpg)
8 |
874567 - VIS More informationQuantity required : 4 |
||||||
|
9 |
CYLINDER BASE GASKET- "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 BREVA, GRISO, NORGE, SPORT -976064- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
10 |
122675 - VIS More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
11 |
AP8152105 - RONDELLE More informationQuantity required : 8 |
||||||
|
12 |
976031 - PRIGIONIERO TESTA M10X215 More informationQuantity required : 8 |
||||||
|
13 |
976003 - BIELLA COMPLETA L=144 More informationQuantity required : 2 |
||||||
|
13 |
Bielle cpl. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/9/4/img/69594.jpg)
14 |
SCREW - FOR CONNECTING ROD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA/MOTO-GUZZI -849131- More informationQuantity required : 4 |
||||||
|
14 |
GU01062230 - VITE BIELLA More informationQuantity required : 4 |
||||||
|
15 |
GU91112128 - BAGUE More informationQuantity required : 2 |
||||||
|
16 |
976171 - SEMICUSCINETTO DI BIELLA BLU More informationQuantity required : 4 |
||||||
|
16 |
976172 - SEMICUSCINETTO DI BIELLA ROSSO More informationQuantity required : 4 |
||||||
|
16 |
GU01062030 - SEMIGUSCIO BRONZINA More informationQuantity required : 4 |
||||||
|
16 |
GU30062001 - DEMI-COUSSINET 0,254 MM More informationQuantity required : 4 |
||||||
|
16 |
GU30062002 - DEMI-COUSSINET 0,508 MM More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/3/3/img/130533.jpg)
16 |
GU30062003 - DEMI-COUSSINET 0,762 MM More informationQuantity required : 4 |
||||||
|
17 |
976116 - ALBERO MOTORE V12 (C=81.2) More informationQuantity required : 1 |
||||||
|
17 |
976187 - ALBERO MOTORE 1200 C/TAPPO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/1/5/img/131815.jpg)
18 |
CRANKSHAFT MACHINING PLUG "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, GRISO, QUOTA, V11, 1200 NORGE, BREVA, SPORT -GU37065405 More informationQuantity required : 1 |
||||||
|
19 |
GU04067000 - VOLANT CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
20 |
SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
21 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901 More informationQuantity required : 6 |
||||||
|
22 |
GU01067930 - CORONA AVVIAMENTO More informationQuantity required : 1 |
||||||
|
23 |
GU05025330 - CAOUTCHOUC More informationQuantity required : 54 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
24 |
JET FOR OIL PIPE ON CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO-GUZZI MOTORBIKES+ MAXISCOOTER 400-500 CC -825597 More informationQuantity required : 6 |
