Vehicle Exploded View - MOTO-GUZZI SPORT 1200 Sport 1200 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

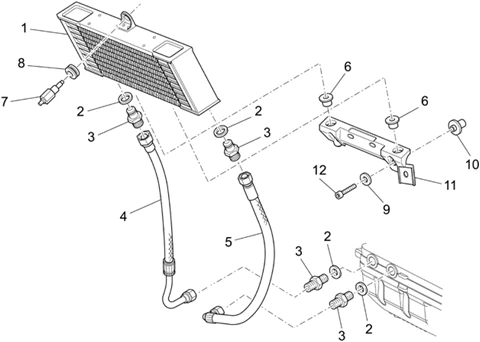

Chassis : 33.25 RADIATEUR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/516/Sport_1200_2006-2007_33.25.PNG)
1 |
GU05162031 - RADIATEUR HUILE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/0/img/73410.jpg)
2 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD -GU01154230 More informationQuantity required : 4 |
||||||
|
3 |
GU01161331 - REDUCTION More informationQuantity required : 4 |
||||||
|
4 |
GU05162331 - TUYAU D. More informationQuantity required : 1 |
||||||
|
5 |
GU05161631 - TUYAU G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
6 |
AP8101372 - SILENTBLOC More informationQuantity required : 2 |
||||||
|
7 |
GU05164630 - VIS SPECIALE More informationQuantity required : 1 |
||||||
|
8 |
GU91551010 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
9 |
GU95005306 - RONDELLE 6,4X13X1,5 More informationQuantity required : 2 |
||||||
|
10 |
GU91120622 - BAGUE 6,2X11X22,5 More informationQuantity required : 2 |
||||||
|
11 |
GU05164230 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/5/img/133155.jpg)
12 |
GU98680340 - VIS M6X40 More informationQuantity required : 2 |
