Vehicle Exploded View - APRILIA TUAREG 660 E5+ 2024 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

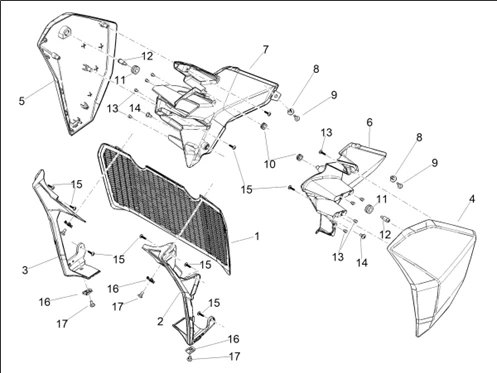

Carrosserie : 02.08 CARÈNE LATERAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1299/Tuareg_660_E5_2024_(EMEA-GSO)_02.08.png)
1 |
2B008834 - GRILLE RADIATEUR More informationQuantity required : 1 |
||||||
|
2 |
2B009004 - LH RADIATOR GRILLE CLOSURE More informationQuantity required : 1 |
||||||
|
3 |
2B009003 - RH RADIATOR GRILLE CLOSURE More informationQuantity required : 1 |
||||||
|
4 |
2B008828000XBC - TRANSPORTEUR GAUCHE P.BLANC More informationQuantity required : 1 |
||||||
|
4 |
2B008828 - LEFT AIR INLET More informationQuantity required : 1 |
||||||
|
4 |
2B008828000V22 - CONVOYEUR G More informationQuantity required : 1 |
||||||
|
5 |
2B008827000XBC - TRANSPORTEUR DROIT P.BLANC More informationQuantity required : 1 |
||||||
|
5 |
2B008827 - RIGHT AIR INLET More informationQuantity required : 1 |
||||||
|
5 |
2B008827000V22 - CONVOYEUR D More informationQuantity required : 1 |
||||||
|
6 |
2B008830 - EXTRACTEUR GAUCHE More informationQuantity required : 1 |
||||||
|
7 |
2B008829 - EXTRACTEUR DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
8 |
CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
9 |
AP8144563 - RIVETTO IN PLASTICA MASCHIO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
10 |
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
11 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
12 |
2B009427 - TIGE FILETEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/6/img/72286.jpg)
13 |
AP8220488 - CAOUTCHOUC CHAMPIGNON; More informationQuantity required : 8 |
||||||
|
14 |
2B009423 - M5X12 TORX SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
15 |
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
16 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 2 |
||||||
|
17 |
2B009423 - M5X12 TORX SCREW More informationQuantity required : 4 |
