Vehicle Exploded View - APRILIA TUAREG 660 E5+ 2024 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

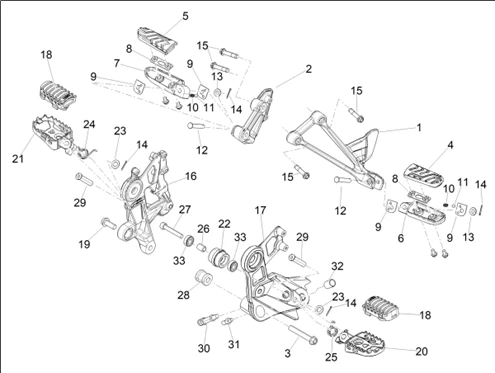

Châssis/coque : 01.02 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1299/Tuareg_660_E5_2024_(EMEA-GSO)_01.02.png)
1 |
2B013215 - SUPPORT REPOSE-PIEDS PASS. G. More informationQuantity required : 1 |
||||||
|
2 |
2B013214 - SUPPORT REPOSE-PIEDS PASS. D. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/7/6/img/42376.jpg)
3 |
895845 - VIS FLANG.M 10 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/6/img/73476.jpg)
4 |
RUBBER FOR LEFT FOOTREST "PIAGGIO GENUINE PART" MOTO-GUZZI NORGE, BREVA, STELVIO, BELLAGIO, V7, NEVADA/APRILIA SHIVER, PEGASO, DORSODURO -GU32443211- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/5/img/73475.jpg)
5 |
FOOTREST RUBBER "PIAGGIO GENUINE PART" MOTO-GUZZI NORGE, BREVA, STELVIO, BELLAGIO, V7, NEVADA/APRILIA SHIVER, PEGASO, DORSODURO -GU32443210- More informationQuantity required : 1 |
||||||
|
6 |
2B010339 - LEFT FOOTREST LH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/3/1/4/img/203314.jpg)
7 |
2B010340 - RIGHT FOOTREST RH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/1/img/73471.jpg)
8 |
FOOTREST PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -GU32441210 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
9 |
AP8134451 - PLAQUE FDC R-PIED; More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
10 |
FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/4/img/71274.jpg)
11 |
AP8110110 - BILLE D.7 More informationQuantity required : 2 |
||||||
|
12 |
2B009229 - PIVOT REPOSE-PIEDS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/4/0/img/72040.jpg)
13 |
AP8163165 - RONDELLE INOX More informationQuantity required : 2 |
||||||
|
14 |
AP8101928 - GOUPILLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/8/0/0/img/151800.jpg)
15 |
2B004782 - VIS M8X35 8.8 More informationQuantity required : 4 |
||||||
|
16 |
2B010883 - RIGHT RIDER FOOTREST SUPPORT More informationQuantity required : 1 |
||||||
|
17 |
2B011136 - SUPPORT R-P. G More informationQuantity required : 1 |
||||||
|
18 |
2B008943 - CAOUTCHOUC REP-PIEDS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/6/img/71986.jpg)
19 |
AP8152473 - VITE TE M10 X 25 FLANGIATA More informationQuantity required : 1 |
||||||
|
20 |
2B008720 - R-PIED PILOTE G More informationQuantity required : 1 |
||||||
|
21 |
2B008719 - R-PIED PILOTE D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/0/6/img/72006.jpg)
22 |
CHAIN GUIDE ROLLER "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD, 125 RS, 850 SRV -AP8161074- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
23 |
AP8152176 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/2/0/6/img/97206.jpg)
24 |
RETURN SPRING FOR RIDER FOOTREST (RIGHT) "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD, 450-550 RXV, SXV -AP9100196 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/0/1/img/72601.jpg)
25 |
AP9100195 - MOLLA RICHIAMO PEDANA LATO SX More informationQuantity required : 1 |
||||||
|
26 |
AP8161076 - DISTANZIALE RULLO CATENA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
27 |
AP8150277 - VIS More informationQuantity required : 1 |
||||||
|
28 |
2B006346 - SPACER BUSH More informationQuantity required : 1 |
||||||
|
29 |
2B008132 - PIVOT REPOSE-PIEDS More informationQuantity required : 2 |
||||||
|
30 |
2B010367 - PIVOT FIX. RESSORT More informationQuantity required : 1 |
||||||
|
31 |
2B014243 - TIGE FILETEE More informationQuantity required : 1 |
||||||
|
32 |
2B010698 - DOUILLE More informationQuantity required : 1 |
||||||
|
33 |
AP9100175 - CUSCINETTO A SFERE D8 D22 SP7 More informationQuantity required : 2 |
