Vehicle Exploded View - APRILIA TUAREG 660 E5+ 2024 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

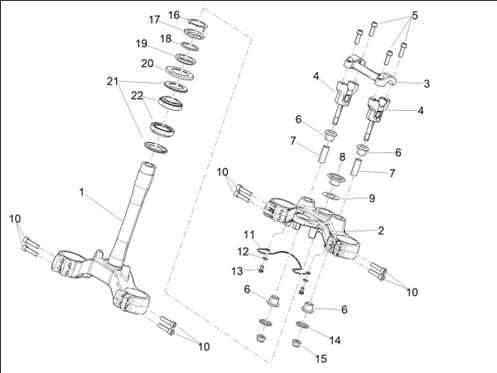

Guidon - commandes : 07.01 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1299/Tuareg_660_E5_2024_(EMEA-GSO)_07.01.png)
1 |
2B013193 - PLAQUE INFERIEURE More informationQuantity required : 1 |
||||||
|
2 |
2B008440 - MACHINED TOP PLATE More informationQuantity required : 1 |
||||||
|
3 |
2B006546 - UPPER HANDLEBAR U-BOLT More informationQuantity required : 1 |
||||||
|
4 |
2B008480 - HANDLEBARS CASE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/4/0/img/51040.jpg)
5 |
AP8152486 - VITE TCC M8X25 INOX More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/4/img/71754.jpg)
6 |
AP8144222 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/9/3/img/39893.jpg)
7 |
854827 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
8 |
2B012447 - BOUCHON PLAQUE GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/5/img/71985.jpg)
9 |
AP8152442 - RONDELLA TAPPO CANNOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
10 |
AP8150236 - VIS More informationQuantity required : 8 |
||||||
|
11 |
2B009935 - PASSE-CâBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
12 |
AP8150014 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/6/4/4/img/156644.jpg)
13 |
2B005143 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
14 |
2B002875 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
15 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
|
16 |
887832 - PIASTRINA DI SICUREZZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/5/img/71525.jpg)
17 |
NUT - FOR STEERING COLUMN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA / MOTO-GUZZI -AP8123643 More informationQuantity required : 1 |
||||||
|
18 |
887831 - DISTANZIALE IN GOMMA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/4/img/71524.jpg)
19 |
AP8123642 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/6/img/71526.jpg)
20 |
AP8123644 - ANNEAU PARE-POUSS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/3/img/71523.jpg)
21 |
AP8123641 - ANNEAU PARE-POUSS. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/0/8/2/img/176082.jpg)
22 |
2B007853 - THRUST BALL BEARING More informationQuantity required : 2 |
