Vehicle Exploded View - APRILIA TUAREG 660 Rally E5+ 2025 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

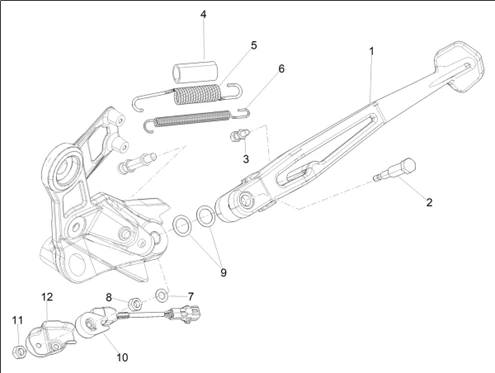

Châssis/coque : 01.03 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1298/Tuareg_660_Rally_E5_2025_(EMEA-GSO)_01.03.png)
1 |
2B014419 - BEQUILLE LATERALE More informationQuantity required : 1 |
||||||
|
2 |
2B014555 - AXE DE BEQUILLE More informationQuantity required : 1 |
||||||
|
3 |
2B014403 - PIVOT FIX. RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
4 |
SIDE STAND SPRING COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8102524- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
5 |
AP8221197 - RESSORT RAPPEL BEQ. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/4/img/72304.jpg)
6 |
AP8221211 - RESS.RETOUR BEQ.INT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
7 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/7/img/50827.jpg)
8 |
AP8150027 - ECROU More informationQuantity required : 1 |
||||||
|
9 |
893881 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/0/0/img/171500.jpg)
10 |
2D000530 - SIDE STAND SWITCH More informationQuantity required : 1 |
||||||
|
11 |
AP8150269 - ÉCROU More informationQuantity required : 1 |
||||||
|
12 |
2B014242 - STAND SENSOR COVER More informationQuantity required : 1 |
