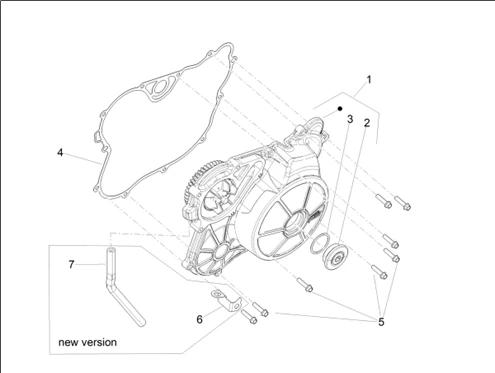

Moteur : 03.27 CARTER DE VOLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1298/Tuareg_660_Rally_E5_2025_(EMEA-GSO)_03.27.png)
1 |
1A024228 - CARTER DE VOLANT More informationQuantity required : 1 |
||||||
|
2 |
1A016703 - FLYWHEEL COVER PLUG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/0/9/img/43309.jpg)
3 |
974219 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/1/1/img/171611.jpg)
4 |
1A013508 - FLYWHEEL COVER GASKET More informationQuantity required : 1 |
||||||
|
5 |
874549 - VIS BRIDE More informationQuantity required : 8 |
||||||
|
6 |
1A024107 - BRIDE More informationQuantity required : 1 |
||||||
|
7 |
1A024108 - TUBE PURGE EAU More informationQuantity required : 1 |
