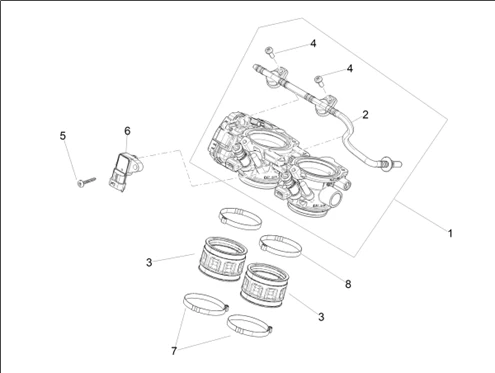

Moteur : 03.06 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1298/Tuareg_660_Rally_E5_2025_(EMEA-GSO)_03.06.png)
1 |
1A026467 - THROTTLE BODY ASSY More informationQuantity required : 1 |
||||||
|
2 |
1A027643 - FUEL PIPE More informationQuantity required : 1 |
||||||
|
3 |
1A026526 - HEAD-THROTTLE BODY INTAKE MANIFOLD More informationQuantity required : 2 |
||||||
|
4 |
896567 - VIS FIX. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
5 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/7/3/img/67973.jpg)
6 |
INLET AIR PRESSURE SENSOR "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4, 850 SRV/GILERA 800 GP -6423025- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/7/img/69757.jpg)
7 |
857306 - COLLIER More informationQuantity required : 2 |
||||||
|
8 |
1A026530 - COLLIER SERR. TUBE More informationQuantity required : 2 |
