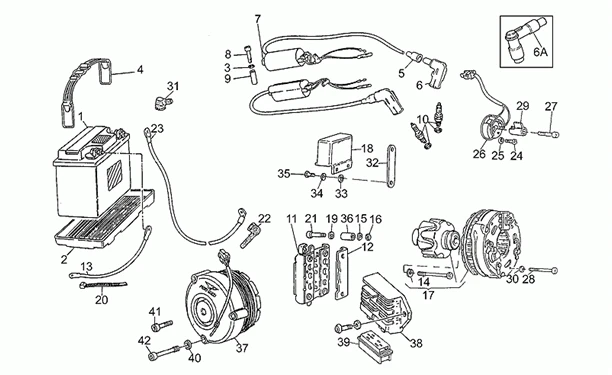

Chassis : 33.01 BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/528/V50_PA_500_1992-2001_33.01.PNG)
1 |
GU03704571 - BATTERIE YUASA 12V-18AH More informationQuantity required : 1 |
||||||
|
1 |
BATTERIE |
||||||
|
2 |
GU14707000 - PLATEAU DE BATTERIE More informationQuantity required : 1 |
||||||
|
3 |
GU95004205 - RONDELLE More informationQuantity required : 4 |
||||||
|
4 |
GU19704800 - ETRIER COLLIER BATT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
5 |
GU14717600 - CAPUCHON More informationQuantity required : 2 |
||||||
|
6 |
GU14717400 - PIPE BOUGIE More informationQuantity required : 2 |
||||||
|
6 |
AP8212219 - PIPE BOUGIE BLINDEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/2/5/5/img/131255.jpg)
7 |
IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75, -GU31716560- More informationQuantity required : 2 |
||||||
|
8 |
VIS |
||||||
|
9 |
GU91180721 - ENTRETOISE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/7/img/69457.jpg)
10 |
SPARK PLUG NGK B8ES "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR, MOTO-GUZZI V65, NEVADA, STRADA -847085- More informationQuantity required : 2 |
||||||
|
11 |
|
||||||
|
12 |
PROTECTION REDRESS. |
||||||
|
13 |
GU19748400 - CABLE BATTERIE More informationQuantity required : 1 |
||||||
|
14 |
GU14712459 - VIS More informationQuantity required : 1 |
||||||
|
15 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 4 |
||||||
|
16 |
GU92602205 - ECROU More informationQuantity required : 4 |
||||||
|
17 |
GU17712400 - ALTERNATEUR More informationQuantity required : 1 |
||||||
|
18 |
Régulateur de tension BOSCH |
||||||
|
19 |
|
||||||
|
20 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 20 |
||||||
|
21 |
GU98052245 - VIS More informationQuantity required : 4 |
||||||
|
22 |
GU19707100 - CAPUCHON More informationQuantity required : 2 |
||||||
|
23 |
GU19748000 - CABLE BATTERIE More informationQuantity required : 1 |
||||||
|
24 |
|
||||||
|
25 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
|
26 |
GU29722270 - CAPTEUR PHASE/TOURS More informationQuantity required : 1 |
||||||
|
27 |
GU98622318 - VIS M6X18 More informationQuantity required : 1 |
||||||
|
28 |
GU98620245 - VIS M5X45 More informationQuantity required : 3 |
||||||
|
29 |
|
||||||
|
30 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 3 |
||||||
|
31 |
GU23707100 - CAPUCHON More informationQuantity required : 1 |
||||||
|
32 |
SUPPORT |
||||||
|
33 |
GU91180605 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.jpg)
34 |
GU95129100 - RONDELLE ELASTIQUE 5,3X10X0,5 More informationQuantity required : 4 |
||||||
|
35 |
GU98054214 - VIS More informationQuantity required : 4 |
||||||
|
36 |
GU91180627 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
37 |
Alternateur SAPRISA |
||||||
|
38 |
Régulateur de tension SAPRISA |
||||||
|
39 |
GU28712500 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
40 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 3 |
||||||
|
41 |
Vis |
||||||
|
42 |
GU28712459 - VIS More informationQuantity required : 3 |
