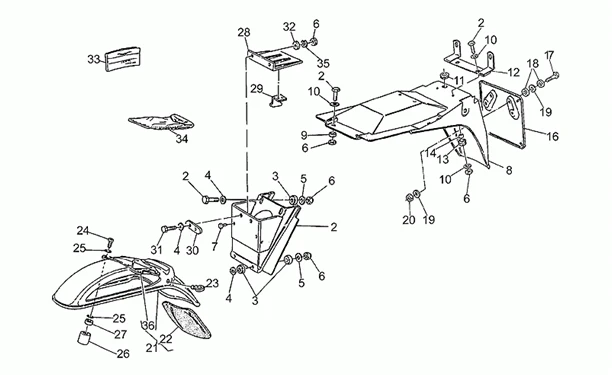

Chassis : 33.17 GARDE-BOUE - ACCESS.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/528/V50_PA_500_1992-2001_33.17.PNG)
1 |
PARE BOUE AR. |
||||||
|
1 |
PARE BOUE AR. |
||||||
|
2 |
GU98054320 - VIS M6X20 More informationQuantity required : 6 |
||||||
|
3 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 8 |
||||||
|
4 |
GU95000206 - RONDELLE More informationQuantity required : 6 |
||||||
|
5 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 4 |
||||||
|
6 |
GU92630106 - ECROU M6X1 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
7 |
GU19705900 - TAMPON More informationQuantity required : 2 |
||||||
|
8 |
GARDE-BOUE AR. |
||||||
|
9 |
GU93110082 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
10 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 8 |
||||||
|
11 |
|
||||||
|
12 |
SUPPORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
13 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
14 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
16 |
Porte-plaque |
||||||
|
17 |
GU98052220 - VIS More informationQuantity required : 4 |
||||||
|
18 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
19 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.jpg)
20 |
GU92630105 - ECROU More informationQuantity required : 4 |
||||||
|
21 |
GARDE-BOUE AV. |
||||||
|
21 |
GARDE-BOUE AV. |
||||||
|
21 |
GU89000253 - GARDE-BOUE AV. BLEU More informationQuantity required : 1 |
||||||
|
22 |
GU27436920 - PARE BOUE AR. More informationQuantity required : 1 |
||||||
|
23 |
GU28659740 - OEILLET More informationQuantity required : 1 |
||||||
|
24 |
GU98230845 - VIS More informationQuantity required : 4 |
||||||
|
25 |
GU90706092 - JOINT TORIQUE More informationQuantity required : 8 |
||||||
|
26 |
Entretoise |
||||||
|
27 |
GU28436460 - DOUILLE More informationQuantity required : 4 |
||||||
|
28 |
GU23439010 - SUPPORT More informationQuantity required : 1 |
||||||
|
29 |
GU23438510 - PLAQUE More informationQuantity required : 2 |
||||||
|
30 |
|
||||||
|
31 |
GU98054312 - VIS More informationQuantity required : 2 |
||||||
|
32 |
GU95100118 - RONDELLE 6,2X18X1 More informationQuantity required : 2 |
||||||
|
33 |
|
||||||
|
34 |
TROUSSE OUTILS |
||||||
|
35 |
Rondelle évent. |
||||||
|
36 |
PLAQUE |
