Vehicle Exploded View - MOTO-GUZZI V50 500 PA 500 1992-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

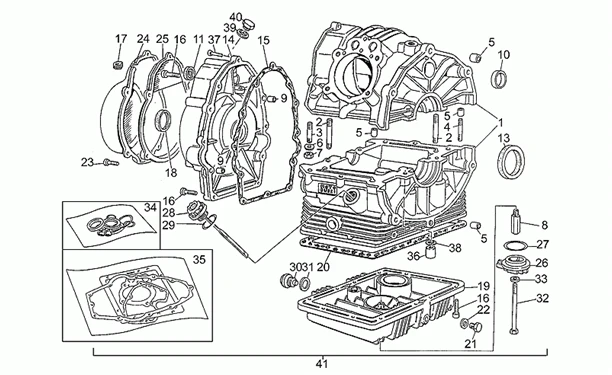

Moteur : 34.30 COUVERCLES CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/528/V50_PA_500_1992-2001_34.30.PNG)
1 |
CARTERS COUPLES |
||||||
|
1 |
|
||||||
|
2 |
GU96451560 - VIS SANS TETE More informationQuantity required : 4 |
||||||
|
3 |
GU96451430 - VIS SANS TETE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/2/1/img/132821.jpg)
4 |
GU96508055 - VIS SANS TETE More informationQuantity required : 2 |
||||||
|
5 |
GU19015020 - BAGUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
6 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 6 |
||||||
|
7 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 6 |
||||||
|
8 |
GU19003800 - RACCORD More informationQuantity required : 1 |
||||||
|
9 |
GU19002020 - BAGUE 6,6X9X13 More informationQuantity required : 2 |
||||||
|
10 |
886719 - BOUCHON More informationQuantity required : 1 |
||||||
|
11 |
GU90401530 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/1/5/6/img/99156.jpg)
13 |
SEAL RING GASKET- FOR CRANSHAFT (53-72-12) "PIAGGIO GENUINE PART" MOTO-GUZZI V7, V9, V50, V35, NEVADA, BREVA -886365 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/4/img/125184.jpg)
13 |
O'RING GASKET ON CRANKSHAFT (CLUTCH SIDE) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU90405367- More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
|
14 |
COUVERCLE DE DISTRIB |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/8/9/img/99289.jpg)
15 |
887003 - GUARNIZIONE COPERCHIO DISTRIBUZIONE More informationQuantity required : 1 |
||||||
|
16 |
GU98622325 - VIS M6X25 More informationQuantity required : 22 |
||||||
|
17 |
GU19007700 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
18 |
GU90402840 - BAGUE D'ETANCHEITE 28X38X7 More informationQuantity required : 1 |
||||||
|
19 |
GU20003510 - CARTER INFERIEUR GRIS More informationQuantity required : 1 |
||||||
|
19 |
CARTER D HUILE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/9/0/img/99290.jpg)
20 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V-7, BREVA, NEVADA -887004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
21 |
OIL DRAIN CAP/TRANSMISSION DRAIN CAP "PIAGGIO GENUINE PART" FOR ALL MOTO-GUZZI -GU31003766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
22 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 850 CALIFORNIA 1985>, 1100 CALIFORNIA 1994>, 750 V7 2008>, NEVADA 2012>, V9 2016>, V11 2001>, V65 1982> -GU10528900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/3/5/img/141235.jpg)
23 |
GU98620335 - VIS M6X35 More informationQuantity required : 5 |
||||||
|
24 |
GU32001610 - COUVERCLE More informationQuantity required : 1 |
||||||
|
25 |
GU27001136 - BRIDE More informationQuantity required : 1 |
||||||
|
26 |
GU19003400 - COUVERCLE FILTRE AIR More informationQuantity required : 1 |
||||||
|
26 |
GU20003410 - PETIT COUVERCLE GRIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/3/img/132243.jpg)
27 |
GASKET FOR OIL FILTER COVER "PIAGGIO GENUINE PART" MOTO-GUZZI V9 2016> -GU90706444 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/8/2/0/img/98820.jpg)
28 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, V7, BREVA, STRADA, V50, V65 -883826- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/3/3/img/132233.jpg)
29 |
GU90706282 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
30 |
OIL DRAIN CAP/TRANSMISSION DRAIN CAP "PIAGGIO GENUINE PART" FOR ALL MOTO-GUZZI -GU31003766 More informationQuantity required : 1 |
||||||
|
30 |
GU12003702 - BOUCHON VID.HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/8/img/132738.jpg)
31 |
DRAIN CAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU95100709- More informationQuantity required : 1 |
||||||
|
32 |
GU27152885 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
33 |
O'RING GASKET FOR OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI V9 2016> -GU12154200 More informationQuantity required : 1 |
||||||
|
34 |
GU31999565 - JOINT SPY-SERIE More informationQuantity required : 1 |
||||||
|
35 |
GU19999080 - ENSEMBLE DE JOINTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/7/img/129157.jpg)
36 |
NUT - FOR STEERING COLUMN/OR CRANKCASE "PIAGGIO GENUINE PART" PIAGGIO COMMON FOR MOTO-GUZZI RANGE -GU13021900- More informationQuantity required : 4 |
||||||
|
37 |
GU98680330 - VIS TCEI M6X30 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
38 |
GU95129180 - RONDELLE 10,5X18X0,8 More informationQuantity required : 4 |
||||||
|
39 |
GU10154200 - JOINT More informationQuantity required : 1 |
||||||
|
40 |
BOUCHON |
||||||
|
41 |
|
||||||
|
41 |
|
