Vehicle Exploded View - VESPA VESPA GTV 300 HPE SEI GIORNI ie E5 ABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

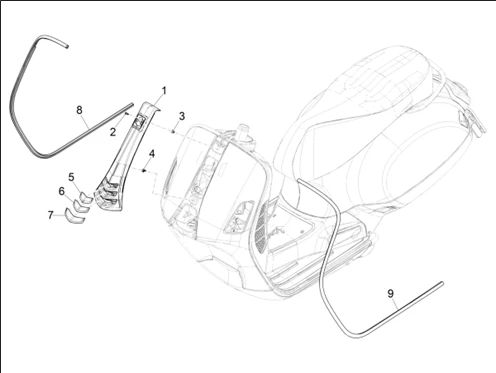

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1172/Vespa_GTV_300_HPE_SEI_GIORNI_ie_E5_ABS_2020_(EMEA)_02.26.png)
1 |
1B006684400HX - CACHE COLONNE DE DIRECTION PEINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/5/9/img/156059.jpg)
1 |
1B005760 - CACHE-DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/8/img/96288.jpg)
2 |
CM179101 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
3 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
4 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/9/5/1/7/img/169517.jpg)
5 |
UPPER EMBLEM - ON FRONT SHIELD "PIAGGIO GENUINE PART" PIAGGIO 125-300 VESPA GTS,GTV 2018> -1B005775000NQ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/9/5/1/8/img/169518.jpg)
6 |
INTERMEDIATE DECORATION - ON FRONT SHIELD "PIAGGIO GENUINE PART" PIAGGIO 125-300 VESPA GTS,GTV 2018> -1B005776000NQ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/9/5/1/9/img/169519.jpg)
7 |
LOWER EMBLEM - ON FRONT SHIELD "PIAGGIO GENUINE PART" PIAGGIO 125-300 VESPA GTS,GTV 2018> -1B005777000NQ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/6/6/img/156066.jpg)
8 |
1B003380 - SHIELD BORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/6/7/img/156067.jpg)
9 |
1B003379 - SHIELD BORD More informationQuantity required : 1 |
