Vehicle Exploded View - VESPA VESPA GTV 300 HPE SEI GIORNI ie E5 ABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

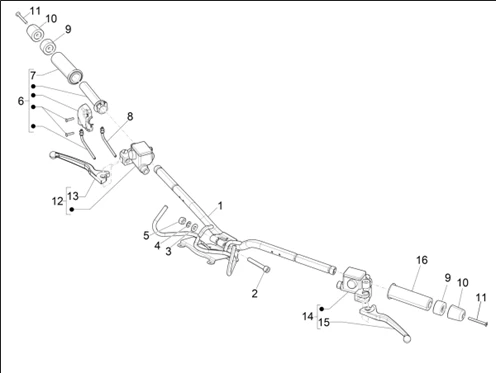

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1172/Vespa_GTV_300_HPE_SEI_GIORNI_ie_E5_ABS_2020_(EMEA)_03.06.png)
1 |
1B001759 - GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/5/9/img/90459.jpg)
2 |
668874 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
3 |
012543 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/6/img/110336.jpg)
4 |
267917 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
5 |
015330 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
1C00459900090 - POIGNEE DE GAZ CPL More informationQuantity required : 1 |
||||||
|
7 |
RIGHT HAND GRIP "PIAGGIO GENUINE PART" 250-500 BEVERLY, 250-300 VESPA GTV -648551- More informationQuantity required : 1 |
||||||
|
8 |
1C004597 - TRANSMISTION GAZ More informationQuantity required : 1 |
||||||
|
9 |
656170 - CONTREPOIDS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/5/img/6846_5.jpg)
10 |
BAR ENDS - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -673243 More informationQuantity required : 2 |
||||||
|
11 |
672457 - VIS More informationQuantity required : 2 |
||||||
|
12 |
CM295305 - MAITRE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/1/1/img/66911.jpg)
13 |
RIGHT BRAKE LEVER - "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER, LIBERTY/GILERA 125 RUNNER -497042- More informationQuantity required : 1 |
||||||
|
14 |
CM295604 - POMPE FREIN More informationQuantity required : 1 |
||||||
|
15 |
RIGHT BRAKE LEVER - "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER, LIBERTY/GILERA 125 RUNNER -497042- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/5/7/img/86857.jpg)
16 |
LEFT HAND GRIP "PIAGGIO GENUINE PART" 250-500 BEVERLY, 250-300 VESPA GTV -648550 More informationQuantity required : 1 |
