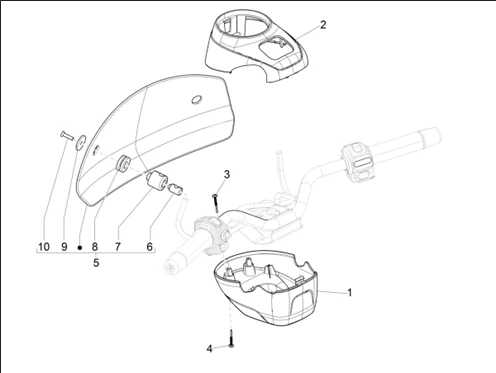

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1172/Vespa_GTV_300_HPE_SEI_GIORNI_ie_E5_ABS_2020_(EMEA)_03.01.png)
1 |
1B006709400HX - COUVRE-GUIDON PARTIE INFERIEURE More informationQuantity required : 1 |
||||||
|
1 |
1B006709 - COIFFE GUIDON INF. More informationQuantity required : 1 |
||||||
|
2 |
62468340HX - COUVRE-GUIDON PARTIE SUPERIEURE More informationQuantity required : 1 |
||||||
|
2 |
624683 - COUVRE POIGNEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
3 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
4 |
259577 - VIS More informationQuantity required : 2 |
||||||
|
5 |
672056 - SPOILER GUIDON More informationQuantity required : 1 |
||||||
|
6 |
269781 - MOYEU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/2/6/6/img/77266.jpg)
7 |
269785 - SUPPORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/3/img/66993.jpg)
8 |
560173 - SILENTBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/4/4/img/79844.jpg)
9 |
562366 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/1/5/2/img/177152.jpg)
10 |
1B006381 - COUNTERSUNK HEAD TORX SCREW More informationQuantity required : 2 |
||||||
|
10 |
1B006381 - COUNTERSUNK HEAD TORX SCREW More informationQuantity required : 2 |
