Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1000 California III Carburatori 1000 1987-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

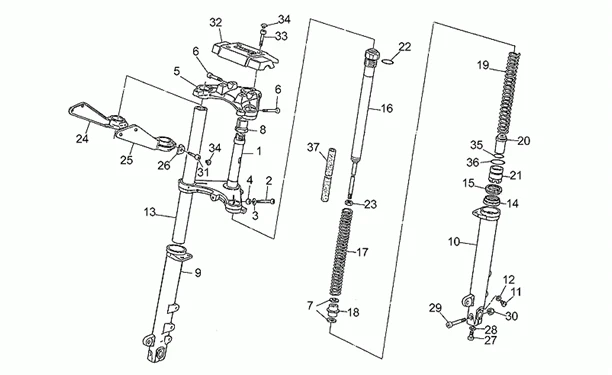

Chassis : 33.10 FOURCHE AV SERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/480/California_III_Carburatori_1000_1987-1993_33.10.PNG)
1 |
|
||||||
|
2 |
GU98620560 - VIS M10X60 Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
GU95004210 - RONDELLE 10,2X18X2 Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
Entretoise |
||||||
|
5 |
T.DE FOURCHE |
||||||
|
6 |
GU98620540 - VIS M10X40 Plus d'informationsQuantité requise : 3 |
||||||
|
7 |
GU95004217 - RONDELLE 17X27X2 Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
GU18516660 - DOUILLE ET PIGNON Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
Fourreau D |
||||||
|
10 |
|
||||||
|
11 |
GU98622318 - VIS M6X18 Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
GU95100116 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/1/4/img/130414.jpg)
13 |
TUBE FOURCHE ORIGINE PIAGGIO MOTO-GUZZI 850 T5, 1000 CALIFORNIA, GT, LE-MANS, SP, STRADA -GU29525450 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/9/1/img/132191.jpg)
14 |
GU90403952 - BAGUE D'ETANCHEITE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/1/2/img/130412.jpg)
15 |
PARE-POUSSIERE FOURCHE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO GUZZI -GU29524550- Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
|
||||||
|
17 |
Ressort sup. |
||||||
|
18 |
GU23527910 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
|
||||||
|
20 |
Tampon fin de course |
||||||
|
21 |
Douille inférieure |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/3/3/img/132233.jpg)
22 |
BAGUE/JOINT ETANCHEITE BOUCHON REMPLISSAGE HUILE (D32) ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU90706282- Plus d'informationsQuantité requise : 2 |
||||||
|
23 |
GU92602308 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
24 |
Support phare D |
||||||
|
25 |
Support phare G |
||||||
|
26 |
GU23497910 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
27 |
GU98622530 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
28 |
JOINT BOUCHON DE VIDANGE ORIGINE PIAGGIO POUR MOTO-GUZZI 850 CALIFORNIA 1985>, 1100 CALIFORNIA 1994>, 750 V7 2008>, NEVADA 2012>, V9 2016>, V11 2001>, V100 -GU10528900 Plus d'informationsQuantité requise : 2 |
||||||
|
29 |
GU98820540 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
30 |
GU92781100 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
31 |
GU98622425 - VIS M8X25 Plus d'informationsQuantité requise : 1 |
||||||
|
32 |
GU23500210 - PLAQUE FIXATION GUIDON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
33 |
VIS BTR (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98680435 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/7/img/129947.jpg)
34 |
BOUCHON COLONNE DE DIRECTION ORIGINE PIAGGIO MOTO GUZZI BELLAGIO 940 2007>2013, BREVA 750 2003>2009, CALIFORNIA 1994>2012, NEVADA 1992>2013 -GU23943410 Plus d'informationsQuantité requise : 6 |
||||||
|
35 |
|
||||||
|
36 |
GU90706252 - JOINT Plus d'informationsQuantité requise : 2 |
||||||
|
37 |
Tuyau guide ressort |
