Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1000 California III Carburatori 1000 1987-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

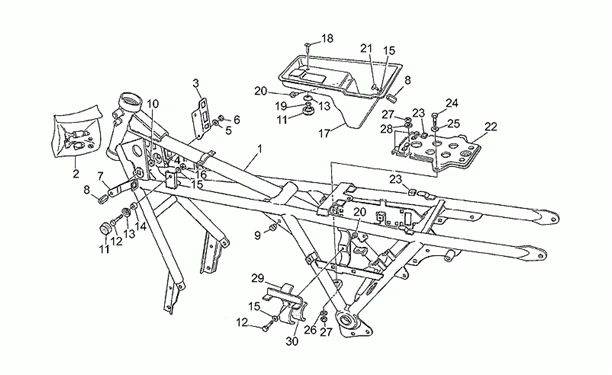

Chassis : 33.31 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/480/California_III_Carburatori_1000_1987-1993_33.31.PNG)
1 |
|
||||||
|
2 |
Serrure blocage direction |
||||||
|
3 |
|
||||||
|
4 |
GU98054312 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
5 |
RONDELLE RESSORT (6.7X11.8X0.4) ORIGINE PIAGGIO COMMUN A LA GAMME -GU61013800 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
GU92602206 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
|
||||||
|
8 |
Goujon |
||||||
|
9 |
GU93180080 - BOUCHON Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
GU92660601 - ECROU EN CAGE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
11 |
TAMPON DE CHASSIS ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU39103400 Plus d'informationsQuantité requise : 4 |
||||||
|
12 |
GU98054318 - VIS Plus d'informationsQuantité requise : 3 |
||||||
|
13 |
GU391035005 - DISQUE Plus d'informationsQuantité requise : 4 |
||||||
|
14 |
GU91180605 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
RONDELLE RESSORT (6.7X11.8X0.4) ORIGINE PIAGGIO COMMUN A LA GAMME -GU61013800 Plus d'informationsQuantité requise : 7 |
||||||
|
16 |
GU92601206 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
SANGLE |
||||||
|
18 |
GU98326009 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
GU92602206 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
20 |
TAMPON BEQUILLE LATERLE ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU19705900 Plus d'informationsQuantité requise : 4 |
||||||
|
21 |
|
||||||
|
22 |
|
||||||
|
23 |
GU29461450 - CAOUTCHOUC Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
GU98054416 - VIS M8X16 Plus d'informationsQuantité requise : 5 |
||||||
|
25 |
GU95004208 - RONDELLE Plus d'informationsQuantité requise : 5 |
||||||
|
26 |
GU95021108 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 3 |
||||||
|
27 |
GU92602208 - ECROU M8X1,25 Plus d'informationsQuantité requise : 5 |
||||||
|
28 |
GU95000208 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
29 |
Plaque |
||||||
|
30 |
|
