Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1000 California III Carburatori 1000 1987-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

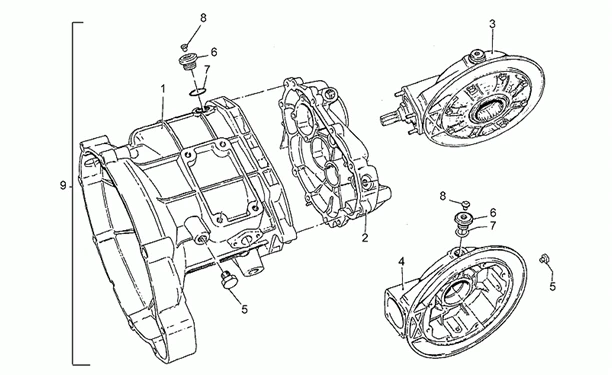

Moteur : 34.51 BOITE DE VITESSES GRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/480/California_III_Carburatori_1000_1987-1993_34.51.PNG)
1 |
Carter de boîte vitesses |
||||||
|
2 |
Couvercle boîte |
||||||
|
3 |
PONT ARR.COMPLET |
||||||
|
4 |
GU30350360 - CARTER DE TRANSMISSION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
5 |
BOUCHON VIDANGE HUILE MOTEUR/BV/PONT ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU31003766 Plus d'informationsQuantité requise : 5 |
||||||
|
5 |
GU95980214 - BOUCHON NIVEAU HUILE Plus d'informationsQuantité requise : 5 |
||||||
|
6 |
BOUCHON OBTURATEUR USINAGE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU12022600- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
7 |
JOINT TORIQUE (20,24X2,62) ARBRE EMBRAYAGE OU BOUCHON HUILE DE CULASSE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU90706203- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/8/img/132578.jpg)
8 |
BOUCHON OBTURATEUR ORINE MOTO GUZZI COMMUN A LA GAMME -GU93180245 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
Boîte vit.cpl.grise |
