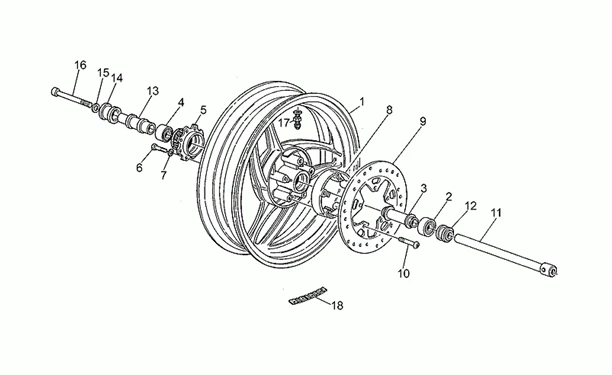

Chassis : 33.16 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/485/Daytona_1000_1992-1995_33.16.PNG)
1 |
Roue arrière |
||||||
|
1 |
Roue arrière |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/2/img/132402.jpg)
2 |
ROULEMENT (20X47X14) DE ROUE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU92204220- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
|
||||||
|
4 |
|
||||||
|
5 |
Coulissant |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
6 |
VIS BTR (8X25) ETRIER OU AMORTISSEUR ORIGINE PIAGGIO COMMUN A LA GAMME -597150- Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
7 |
RONDELLE (8,4X13X0,8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU14615901- Plus d'informationsQuantité requise : 8 |
||||||
|
8 |
Bride |
||||||
|
9 |
Disque frein arrière |
||||||
|
10 |
GU98230845 - VIS Plus d'informationsQuantité requise : 5 |
||||||
|
11 |
|
||||||
|
12 |
|
||||||
|
13 |
GU30634100 - ENTRETOISE INTERNE D. Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/5/4/img/130654.jpg)
15 |
RONDELLE SPECIALE (13X18X1,7) ORIGINE PIAGGIO COMMUN A LA GAMME -GU30217900 Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
Vis |
||||||
|
17 |
GU28617760 - SOUPAPE AIR Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
GU14616150 - CONTREPOIDS Plus d'informationsQuantité requise : 1 |
