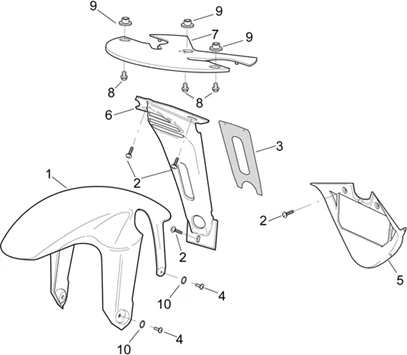

Chassis : 28.10 CARROSSERIE AV. - GARDE-BOUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/743/RSV_1000_SP_1999_28.10.PNG)
1 |
Garde-boue AV carb.; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
2 |
VIS BRIDE BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152246- Plus d'informationsQuantité requise : 5 |
||||||
|
3 |
AP8117129 - PANN.THERM.SPOILER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
4 |
VIS BRIDE BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152298- Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
Emb. carène r.fluo; |
||||||
|
6 |
Spoiler radiateur gris; |
||||||
|
7 |
Fermeture inf. front. car.; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
8 |
VIS BRIDE TH (6X12) ORIGINE PIAGGIO COMUUN A LA GAMME -AP8152277- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
9 |
DOUILLE EN T (6.30X10X7.50) ORIGINE APRILIA COMMUN A LA GAMME -AP8121728 Plus d'informationsQuantité requise : 3 |
||||||
|
10 |
AP8150021 - RONDELLE EVENT.EXT. Plus d'informationsQuantité requise : 4 |
