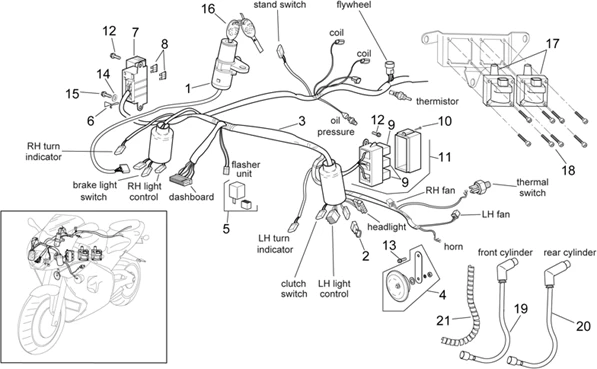

Chassis : 28.36 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/743/RSV_1000_SP_1999_28.36.PNG)
1 |
Bloc démarreur-bloc |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/9/img/72189.jpg)
2 |
DIODE DE SECURITE ORIGINE PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 50-125 RS, TUONO, RX, SX, 1000 RSV-2, FALCO, 650 PEGASO, 400-500 ATLANTIC -AP8212588 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
Câblage principal; |
||||||
|
4 |
AP8127391 - KLAXON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
5 |
CENTRALE CLIGNOTANTE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER APRILIA ET MOTO 125 CC -AP8124235 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8134480 - CROCHET FUSIBLES Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8124274 - BO?TE A FUSIBLES Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.jpg)
8 |
FUSIBLE PLAT ENFICHABLE STANDARD 15A ORIGINE PIAGGIO COMMUN A LA GAMME -CM225715 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/6/img/139406.jpg)
9 |
RELAIS 12V 30A AVEC RESISTANCE ORIGINE PIAGGIO 125-350-500 MP3, X10, 125-250-300 VESPA GTS, PORTER/APRILIA 1000 RSV-2, TUONO V2, FALCO, CAPONORD -1D001636 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
10 |
VIS CRUCIFORME (2.9X12) TARAUD POUR PLASTIQUE INOX ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150421 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
AP8124293 - SUPPORT RELAIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
12 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
13 |
VIS BRIDE TH (8X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152285- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
14 |
RONDELLE PLATE (6,4X12,5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150014 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
15 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152280- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
16 |
EBAUCHE DE CLE FRAISEE SANS TRANSPONDEUR ORIGINE APRILIA COMMUN A LA GAMME -AP8104613- Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
Bobine HT |
||||||
|
18 |
Vis |
||||||
|
19 |
Pipette bougie cylind.AV |
||||||
|
20 |
Pipette bougie cylind.AR |
||||||
|
21 |
Tuyau |
