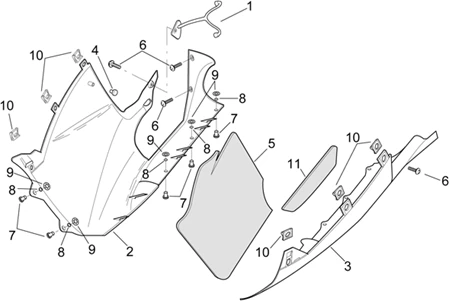

Chassis : 28.12 CARROSSERIE CENTRALE - CARÉNAGE INF.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/743/RSV_1000_SP_1999_28.12.PNG)
1 |
Châssis supp.carène inf.D |
||||||
|
2 |
Carène inf.D rouge fluo; |
||||||
|
3 |
Carène inf.G rouge fluo; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/6/img/71746.jpg)
4 |
BUTEE CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA/MOTO-GUZZI -AP8144081 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
Pann.insonoris.inf.dr; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
6 |
VIS BRIDE BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152246- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/0/img/71750.jpg)
7 |
RIVET FIXATION CARENAGE ORIGINE PIAGGIO APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO -AP8144109 Plus d'informationsQuantité requise : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
8 |
CAOUTCHOUC DE CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA -AP8102504- Plus d'informationsQuantité requise : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
9 |
RONDELLE ELASTIQUE (5) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -AP8150450- Plus d'informationsQuantité requise : 12 |
||||||
|
10 |
ECROU TOLE DZUS/QUART DE TOUR ORIGINE PIAGGIO COMMUN A LAGAMME -AP8101985 Plus d'informationsQuantité requise : 10 |
||||||
|
11 |
AP8117133 - PANN.INSONORIS.INF.G Plus d'informationsQuantité requise : 1 |
