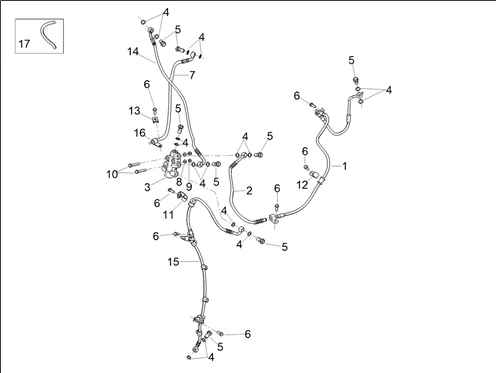

Système de freinage : 06.07 SYSTÈME DE FREINAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1158/SR_COMPACT_GT_125_E5_2021_(EMEA)_06.07.png)
1 |
1C005438 - TUYAU FREIN ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1C005928 - BRAKE HOSE CBS VALVE-CONNECTION Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
CM082808 - SOUPAPE REGLAGE PRESSION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
4 |
JOINT CUIVRE (10X14X1) ETRIER DE FREIN ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -127927- Plus d'informationsQuantité requise : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/5/5/img/127555.jpg)
5 |
VIS DE FREIN BANJO (M10X1.00) ORIGINE PIAGGIO COMMUN A LA GAMME -1C002059R- Plus d'informationsQuantité requise : 8 |
||||||
|
6 |
1C001475 - VIS BRIDE Plus d'informationsQuantité requise : 7 |
||||||
|
7 |
1C006050 - PIPE FITTING (REAR PUMP-VALVE) Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
8 |
RONDELLE PLATE (6X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -003056- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
9 |
ECROU AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -012138 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/6/img/151716.jpg)
10 |
VIS BRIDE TH (6X40) ORIGINE PIAGGIO COMMUN A LA GAMME -1A011120 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/6/4/img/86964.jpg)
11 |
COLLIER FIXATION DURITE DE FREIN ORIGINE PIAGGIO 125-250-300-350-400-500-530 MP3 -649502 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
598795 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
1C006049 - PIPE FITTING ( FRONT PUMP-VALVE) Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
1C006048 - BRAKE HIDR. HOSE(CBS VALVE-CALIPER) Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/1/img/67101.jpg)
16 |
COLLIER FIXATION CABLAGE OU DURITE ORIGINE PIAGGIO COMMUN A LA GAMME -573918- Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
raw material |
