Eclatés de véhicule - APRILIA SX 125 + 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

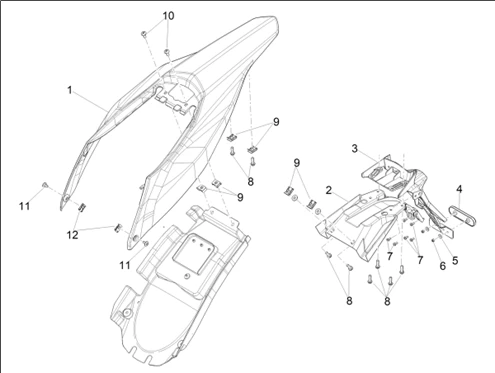

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1313/SX_125_2025_(EMEA)_02.14.png)
1 |
VIS AUTOTARAUDEUSE (4,2X13) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -259349- Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
1B011946000W0N - QUEUE AR Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1B011946000W0B - QUEUE AR BLANC Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
1B012298 - BAVOLET AR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
4 |
CATADIOPTRE ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO ET MAXISCOOTER APRILIA -AP8124718 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
5 |
RONDELLE PLATE (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -013763 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
2R000438 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
7 |
VIS CRUCIFORME (3.9X10) TARAUD INOX POUR PLASTIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150444- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
8 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279- Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/7/img/64537.jpg)
10 |
VIS BTR TETE BOMBEE (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -00H01501701- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
11 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8152339 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
12 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -248419- Plus d'informationsQuantité requise : 2 |
