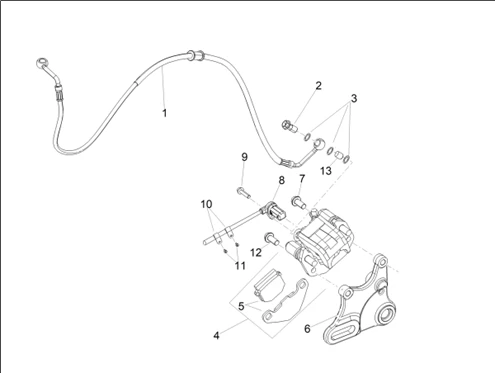

Système de freinage : 06.04 PINCE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1313/SX_125_2025_(EMEA)_06.04.png)
1 |
2R000361 - TUBE FREIN Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2R000377 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
3 |
JOINT CUIVRE (10X14X1) ETRIER DE FREIN ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -127927- Plus d'informationsQuantité requise : 5 |
||||||
|
4 |
2R000372 - ETRIER DE FREIN Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/5/3/4/img/154534.jpg)
5 |
PLAQUETTE FREIN ARRIERE ORIGINE PIAGGIO 125 RX, SX APRILIA 2018>2R000504 - Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
2B004224 - STAFFA DI SUPPORTO PINZA FRENO POST Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
VIS BRIDE TH (8X18) ORIGINE PIAGGIO COMMUN A LA GAMME -2B002417 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
8 |
CAPTEUR ABS ORIGINE PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY -1D003350 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
9 |
VIS BRIDE TH (5X15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152273 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/4/img/70044.jpg)
10 |
864114 - BRIDA FIJ. CABLE D12.70 NEGRA Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
2R000425 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
VIS BRIDE TH (8X18) ORIGINE PIAGGIO COMMUN A LA GAMME -2B002417 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
2R000380 ENTRETOISE Plus d'informationsQuantité requise : 1 |
