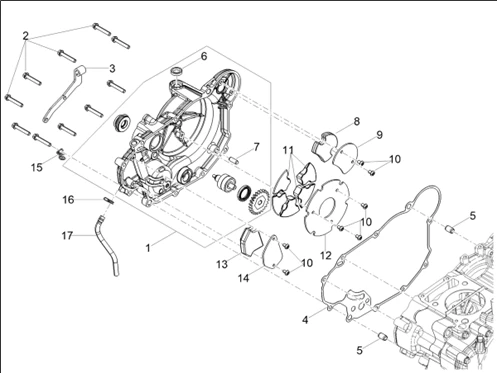

Moteur : 03.22 COUVERCLE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1313/SX_125_2025_(EMEA)_03.22.png)
1 |
1A025954 - PROTECTION EMBRAYAGE AVEC POMPE EAU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
2 |
VIS BRIDE TH (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -414838 Plus d'informationsQuantité requise : 10 |
||||||
|
3 |
873566 - BUTEE DE ROULEMENT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/8/1/img/70681.jpg)
4 |
JOINT DE COUVERCLE EMBRAYAGE ORIGINE PIAGGIO APRILIA 125 RX 2018>, SX 2018>, RS 2011>, TUONO 2017> -878241 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
5 |
DOUILLE DE CENTRAGE (9,5X15) CARTER ORIGINE PIAGGIO COMMUN ALA GAMME -B015956 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
6 |
JOINT SPI (12X20X5) AXE COMMANDE EMBRAYAGE ORIGINE PIAGGIO 50 GILERA SMT, RCR 2006>/DERBI SENDA 2000>/APRILIA SX, RX, RS 2006> -847075- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
|
||||||
|
8 |
1A026286 - TAMPON Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
1A026281 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
1A026082 - SOCKET HEAD SCREW TORX KEY Plus d'informationsQuantité requise : 7 |
||||||
|
11 |
1A026284 - TAMPON Plus d'informationsQuantité requise : 5 |
||||||
|
12 |
1A026283 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
1A026285 - TAMPON Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
1A026282 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
1A026859 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
16 |
COLLIER DE SERRAGE DURITE (5X8) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002901 Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
1A026296 - TUBE PURGE EAU Plus d'informationsQuantité requise : 1 |
