Vehicle Exploded View - MOTO-GUZZI T3 850 1979-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

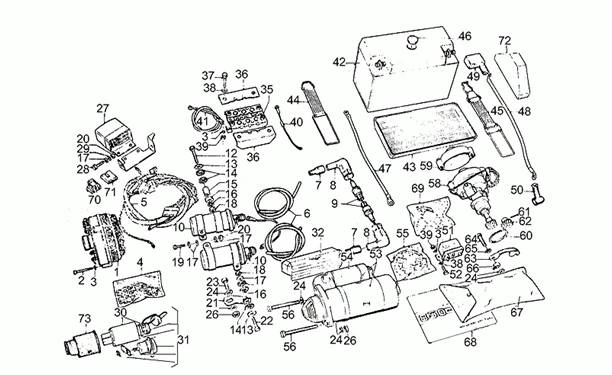

Chassis : 33.01 BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/460/850_T3_1979-1985_33.01.PNG)
1 |
GU17712400 - ALTERNATEUR More informationQuantity required : 1 |
||||||
|
2 |
GU98620245 - VIS M5X45 More informationQuantity required : 3 |
||||||
|
3 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 9 |
||||||
|
4 |
GU17712454 - PORTE-BALAIS More informationQuantity required : 1 |
||||||
|
5 |
FAISCEAU PRINCIPAL |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/7/7/img/129377.jpg)
6 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL 2 VALVES MOTO-GUZZI -GU17718350- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
7 |
GU14717600 - CAPUCHON More informationQuantity required : 2 |
||||||
|
8 |
GU14717400 - PIPE BOUGIE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/5/img/73465.jpg)
9 |
GU30717010 - BOUGIE NGK BP6ES More informationQuantity required : 2 |
||||||
|
10 |
Bobine |
||||||
|
12 |
|
||||||
|
13 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 2 |
||||||
|
14 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
15 |
GU91180718 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
16 |
|
||||||
|
17 |
GU95000206 - RONDELLE More informationQuantity required : 8 |
||||||
|
18 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
19 |
GU98054320 - VIS M6X20 More informationQuantity required : 1 |
||||||
|
20 |
GU92602206 - ECROU More informationQuantity required : 6 |
||||||
|
21 |
|
||||||
|
22 |
GU98052325 - VIS More informationQuantity required : 1 |
||||||
|
23 |
GU98054416 - VIS M8X16 More informationQuantity required : 1 |
||||||
|
24 |
GU95004208 - RONDELLE More informationQuantity required : 5 |
||||||
|
25 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
26 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 2 |
||||||
|
27 |
Régulateur de tension BOSCH |
||||||
|
28 |
GU98054312 - VIS More informationQuantity required : 2 |
||||||
|
29 |
Rondelle évent. |
||||||
|
30 |
GU31735360 - BLOC DEMARREUR More informationQuantity required : 1 |
||||||
|
31 |
|
||||||
|
32 |
GU19733350 - PROTECTION DEMMAR More informationQuantity required : 1 |
||||||
|
35 |
|
||||||
|
36 |
PROTECTION REDRESS. |
||||||
|
37 |
Vis |
||||||
|
38 |
GU95000205 - RONDELLE More informationQuantity required : 4 |
||||||
|
39 |
GU92602205 - ECROU More informationQuantity required : 7 |
||||||
|
40 |
GU17748500 - FILS DE MASSE More informationQuantity required : 1 |
||||||
|
41 |
|
||||||
|
42 |
BATTERIE |
||||||
|
43 |
GU14707000 - PLATEAU DE BATTERIE More informationQuantity required : 1 |
||||||
|
44 |
GU14704800 - COURROIE More informationQuantity required : 1 |
||||||
|
45 |
GU14705500 - ELASTIQUE DE FIXATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/7/img/132577.jpg)
46 |
GU93180220 - BOUCHON More informationQuantity required : 1 |
||||||
|
47 |
Cable |
||||||
|
48 |
Cable |
||||||
|
49 |
|
||||||
|
50 |
GU19707100 - CAPUCHON More informationQuantity required : 1 |
||||||
|
51 |
GU19732500 - RELAIS DEMARRAGE More informationQuantity required : 1 |
||||||
|
52 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/4/4/img/130944.jpg)
53 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" VALEO FOR MOTO-GUZZI -GU30730711- More informationQuantity required : 1 |
||||||
|
54 |
GU14730558 - INTERRUPTEUR A CLE More informationQuantity required : 1 |
||||||
|
55 |
GU14730570 - KIT DE DEMARREUR More informationQuantity required : 1 |
||||||
|
56 |
Vis |
||||||
|
58 |
|
||||||
|
59 |
Couvercle |
||||||
|
60 |
Joint |
||||||
|
61 |
Goupille |
||||||
|
62 |
ENGRENAGE |
||||||
|
63 |
GU14715700 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
64 |
GU98052430 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
65 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 2 |
||||||
|
66 |
Entretoise |
||||||
|
67 |
TROUSSE OUTILS |
||||||
|
68 |
|
||||||
|
68 |
|
||||||
|
68 |
|
||||||
|
68 |
|
||||||
|
69 |
MAINTENANCE KIT-CONTACT BREAKER+CONDENSER "PIAGGIO GENUINE PART" MOTO-GUZZI BEFORE 2000> -GU14719800- More informationQuantity required : 1 |
||||||
|
70 |
GU61712600 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
71 |
GU61712500 - CONNECTEUR 3 VIE More informationQuantity required : 1 |
||||||
|
72 |
GU14705350 - COIN BATTERIE More informationQuantity required : 1 |
||||||
|
73 |
GU19741336 - CAPUCHON More informationQuantity required : 1 |
