Vehicle Exploded View - MOTO-GUZZI T3 850 1979-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

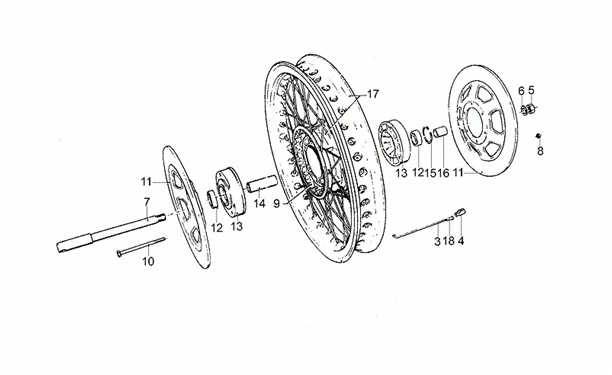

Chassis : 33.23 ROUE AV RAYONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/460/850_T3_1979-1985_33.23.PNG)
3 |
GU28611633 - RAYON LONG More informationQuantity required : 40 |
||||||
|
4 |
GU12616101 - CONTREPOIDS 15 GR. More informationQuantity required : 1 |
||||||
|
4 |
GU12616102 - CONTREPOIDS 20 GR. More informationQuantity required : 1 |
||||||
|
4 |
GU12616103 - CONTREPOIDS 30 GR. More informationQuantity required : 1 |
||||||
|
5 |
GU92602316 - ECROU M6X1,5 More informationQuantity required : 1 |
||||||
|
6 |
GU95004217 - RONDELLE 17X27X2 More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
GU92630508 - ECROU More informationQuantity required : 6 |
||||||
|
9 |
|
||||||
|
10 |
Vis |
||||||
|
11 |
DISQUE FREIN |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/2/img/132402.jpg)
12 |
ROULEMENT DE ROUE (20X47X14) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU92204220- More informationQuantity required : 2 |
||||||
|
13 |
|
||||||
|
14 |
GU14615201 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
15 |
GU90272047 - BAGUE SEEGER 47X50,5 More informationQuantity required : 1 |
||||||
|
16 |
|
||||||
|
17 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/2/4/2/img/13024_2.jpg)
18 |
GU28611733 - NIPPLE More informationQuantity required : 40 |
