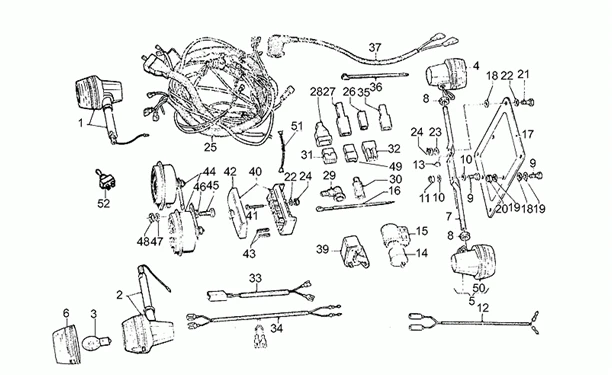

Chassis : 33.15 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/460/850_T3_1979-1985_33.15.PNG)
1 |
|
||||||
|
1 |
CLIGNOTANT |
||||||
|
2 |
CLIGNOTANT |
||||||
|
2 |
|
||||||
|
3 |
|
||||||
|
4 |
|
||||||
|
4 |
CLIGNOTANT |
||||||
|
5 |
|
||||||
|
5 |
CLIGNOTANT |
||||||
|
6 |
|
||||||
|
6 |
|
||||||
|
7 |
GU18753501 - SUPP.CLIGN.ET PL.POL More informationQuantity required : 1 |
||||||
|
8 |
GU19742050 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
9 |
GU98084316 - VIS M6X16 More informationQuantity required : 6 |
||||||
|
10 |
GU95000206 - RONDELLE More informationQuantity required : 12 |
||||||
|
11 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
|
12 |
|
||||||
|
13 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
14 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 1 |
||||||
|
15 |
GU17751200 - BLOC More informationQuantity required : 1 |
||||||
|
16 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 2 |
||||||
|
17 |
GU10474600 - PLAQUE PORT.PL.DE PO More informationQuantity required : 1 |
||||||
|
18 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
|
19 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 2 |
||||||
|
20 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
21 |
GU98054220 - VIS More informationQuantity required : 2 |
||||||
|
22 |
GU95000205 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
23 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.jpg)
24 |
GU92630105 - ECROU More informationQuantity required : 4 |
||||||
|
25 |
Circuit electrique |
||||||
|
26 |
|
||||||
|
27 |
GU93400863 - CONNEXIONE FASTON More informationQuantity required : 2 |
||||||
|
28 |
CAPUCHON |
||||||
|
29 |
GU12735100 - CAPUCHON More informationQuantity required : 1 |
||||||
|
30 |
|
||||||
|
31 |
GU14756251 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
32 |
|
||||||
|
33 |
|
||||||
|
34 |
|
||||||
|
35 |
GU93400963 - CONNECTEUR 3 VIE More informationQuantity required : 1 |
||||||
|
36 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 19 |
||||||
|
37 |
|
||||||
|
39 |
GU19732500 - RELAIS DEMARRAGE More informationQuantity required : 1 |
||||||
|
40 |
|
||||||
|
41 |
|
||||||
|
42 |
|
||||||
|
43 |
GU17742550 - FUSIBLE 16A More informationQuantity required : 6 |
||||||
|
44 |
|
||||||
|
44 |
Klaxon |
||||||
|
45 |
GU98052435 - VIS M8X35 More informationQuantity required : 1 |
||||||
|
46 |
GU95000208 - RONDELLE More informationQuantity required : 1 |
||||||
|
47 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 3 |
||||||
|
48 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 1 |
||||||
|
50 |
|
||||||
|
51 |
RESISTANCE |
||||||
|
52 |
|
