Vehicle Exploded View - MOTO-GUZZI T3 850 1979-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

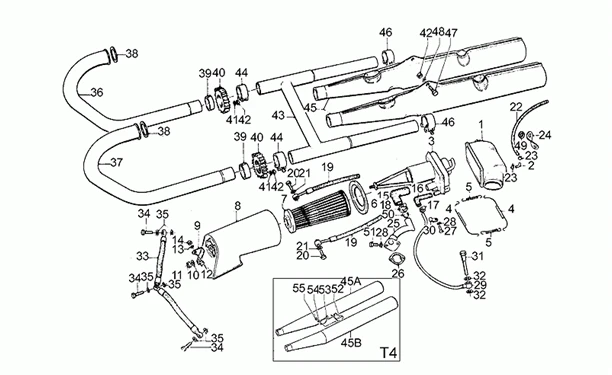

Chassis : 33.33 ASPIRATION-ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/460/850_T3_1979-1985_33.33.PNG)
1 |
GU17114350 - CONDUITE ASPIRATION More informationQuantity required : 1 |
||||||
|
2 |
GU17114650 - RACCORD COUDE More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
|
4 |
|
||||||
|
5 |
Ressort |
||||||
|
6 |
GU17113450 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/1/9/img/129319.jpg)
7 |
GU17113651 - FILTRE AIR More informationQuantity required : 1 |
||||||
|
8 |
GU17114050 - CHAMBRE DE FILTRE A More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
10 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 1 |
||||||
|
11 |
GU92602205 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
12 |
GU98084314 - VIS M6X14 More informationQuantity required : 1 |
||||||
|
13 |
Rondelle évent. |
||||||
|
14 |
GU92602206 - ECROU More informationQuantity required : 1 |
||||||
|
15 |
Pipette |
||||||
|
16 |
Pipette |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/3/img/130133.jpg)
17 |
GU28157950 - COLLIER More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/2/img/130132.jpg)
18 |
OIL HOSE CLAMP "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 850 LE-MANS, 850 T3, 1000 SP, STRADA -GU28157850- More informationQuantity required : 1 |
||||||
|
19 |
|
||||||
|
20 |
GU95990037 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
21 |
O'RING GASKET FOR OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI V9 2016> -GU12154200 More informationQuantity required : 4 |
||||||
|
22 |
GU95985532 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
23 |
GU61108500 - COLLIER D9 More informationQuantity required : 2 |
||||||
|
24 |
GU14115401 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
25 |
GU01007200 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
26 |
GU12007600 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
27 |
GU98084316 - VIS M6X16 More informationQuantity required : 1 |
||||||
|
28 |
GU95120065 - RONDELLE 6,5X11X2 More informationQuantity required : 2 |
||||||
|
29 |
Reniflard |
||||||
|
30 |
GU12006500 - COLLIER More informationQuantity required : 1 |
||||||
|
31 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
32 |
GU12006400 -JOINT More informationQuantity required : 2 |
||||||
|
33 |
|
||||||
|
34 |
GU95990037 - VIS More informationQuantity required : 3 |
||||||
|
35 |
O'RING GASKET FOR OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI V9 2016> -GU12154200 More informationQuantity required : 6 |
||||||
|
36 |
Tuyau échappement d. |
||||||
|
37 |
Tuyau échappement gche |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
38 |
EXHAUST GASKET- ON HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU90718370- More informationQuantity required : 2 |
||||||
|
39 |
GU14121200 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
40 |
Bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
41 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
|
42 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 6 |
||||||
|
43 |
Chambre de détente |
||||||
|
43 |
Chambre de détente |
||||||
|
44 |
GU30123430 - COLLIER More informationQuantity required : 2 |
||||||
|
45 |
Silencieux |
||||||
|
45 |
SILENCIEUX |
||||||
|
45 |
GU17123062 - SILENCIEUX D S17 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/1/6/img/129216.jpg)
46 |
SILENCER CLIP "PIAGGIO GENUINE PART" MOTO-GUZZI 850 T3, 1000 CALIFORNIA, LE MANS, SP -GU14123400 More informationQuantity required : 2 |
||||||
|
47 |
GU98054420 - VIS M8X20 More informationQuantity required : 2 |
||||||
|
48 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
49 |
GU91551081 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
50 |
GU28150560 - SOUPAPE RENIFLARD HUILE More informationQuantity required : 1 |
||||||
|
51 |
GU98054318 - VIS More informationQuantity required : 2 |
||||||
|
52 |
GU17128662 - PLAQUE More informationQuantity required : 1 |
||||||
|
53 |
PLAQUE |
||||||
|
54 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
55 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
