Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape MP 601 Classic 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

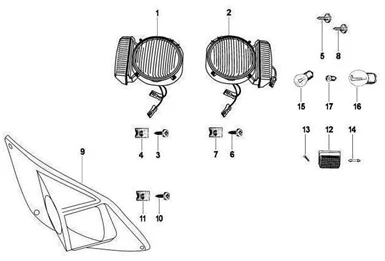

Installation électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/326/Ape_MP_601_Classic_2006-2007_06.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/4/4/4/img/119444.jpg)
1 |
HEADLAMP- RIGHT "PIAGGIO GENUINE PART" APE CALESSINO, CLASSIC -632477R More informationQuantity required : 1 |
||||||
2 |
632478R - PROJECTEUR GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/5/img/63855.jpg)
3 |
008455 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
4 |
NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/2/img/65402.jpg)
5 |
015900 - VIS S01590000 More informationQuantity required : 3 |
||||||
|
6 |
008455 - VIS More informationQuantity required : 1 |
||||||
|
7 |
NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408- More informationQuantity required : 1 |
||||||
|
8 |
015900 - VIS S01590000 More informationQuantity required : 3 |
||||||
|
9 |
602484 - SUPPORT PROJECTEUR DROIT More informationQuantity required : 1 |
||||||
|
9 |
602485 - SUPPORT PROJECTEUR GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
10 |
015911 - VIS S01591100 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
11 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 6 |
||||||
|
12 |
643616 - PLAFONNIER More informationQuantity required : 1 |
||||||
|
13 |
643612 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/0/img/65660.jpg)
14 |
LIGHT BULB 12V5W BA15S TRUNK INTERIOR LIGHT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -071633 More informationQuantity required : 1 |
